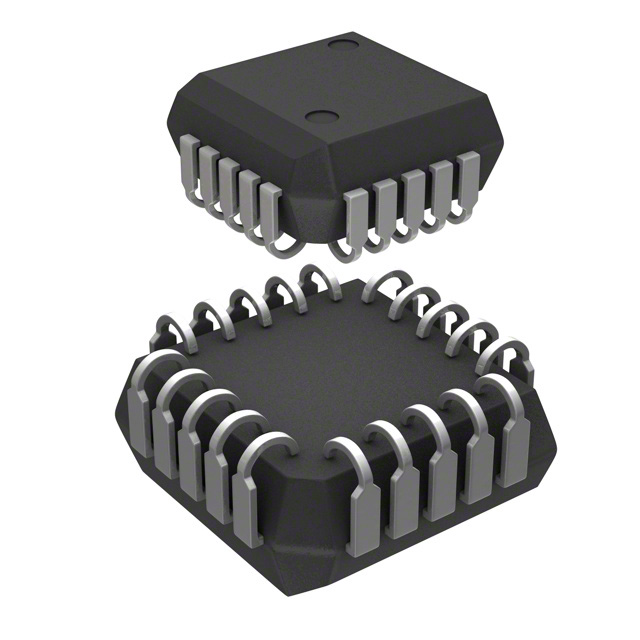

MC10H104FNR2
IC GATE AND 4CH 2-INP 20PLCCManufacturer: onsemi
Categories: Gates and Inverters
Quality Control: Learn More
The onsemi MC10H104FNR2 is a high-speed emitter-coupled logic (ECL) AND gate integrated circuit from the 10H series. This device features four independent 2-input AND gates, each capable of providing an AND or NAND output. The MC10H104FNR2 operates with a supply voltage range of -4.94V to -5.46V, with typical input logic levels at -1.13V for high and -1.48V for low. Maximum propagation delay is specified at 1.75ns at -5.2V. This component is housed in a 20-PLCC (9x9) surface mount package and is supplied on tape and reel (TR). It is suitable for applications requiring high-speed logic functions in telecommunications, computing, and instrumentation. The device offers output currents of 50mA for both high and low states.
Additional Information
Series: 10HRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | 1 of 4 AND/NAND Output |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Logic Type | AND Gate |
| Operating Temperature | 0°C ~ 75°C |
| Voltage - Supply | -4.94V ~ -5.46V |
| Current - Output High, Low | 50mA, 50mA |
| Number of Inputs | 2 |
| Supplier Device Package | 20-PLCC (9x9) |
| Input Logic Level - High | -1.13V |
| Input Logic Level - Low | -1.48V |
| Max Propagation Delay @ V, Max CL | 1.75ns @ -5.2V, - |
| Number of Circuits | 4 |
