NBSG86AMNHTBG
IC SMART GATE SIGE DIFF 16QFNManufacturer: onsemi
Categories: Gates and Inverters - Multi-Function, Configurable
Quality Control: Learn More

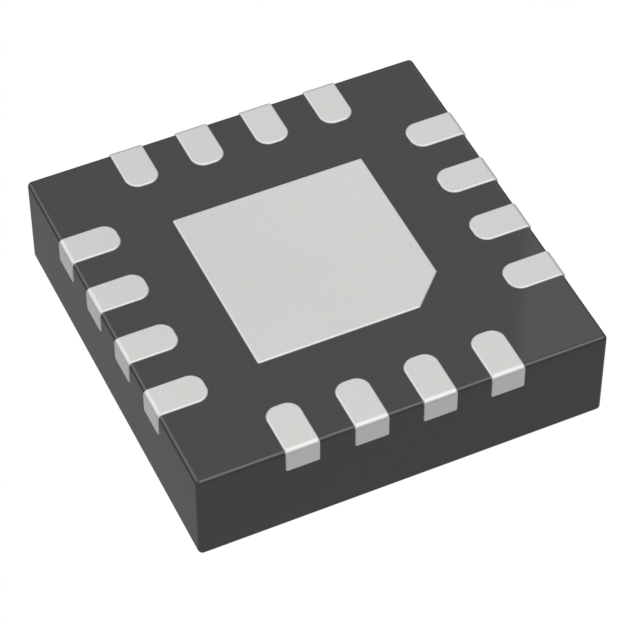

The onsemi NBSG86AMNHTBG is a configurable dual-circuit logic gate designed for high-performance applications. Each of the two independent circuits offers two inputs, enabling flexible configuration for various logic functions. This component utilizes a 16-QFN (3x3) package with an exposed pad, suitable for surface mount assembly. The NBSG86AMNHTBG operates with a supply voltage range of 2.375V to 3.465V and is specified for operation across an extended temperature range of -40°C to 85°C. Its differential output type makes it well-suited for signal integrity-critical designs. This device finds application in areas such as high-speed communications, data acquisition, and networking infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Logic Type | Configurable Multiple Function |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.375V ~ 3.465V |
| Current - Output High, Low | - |
| Number of Inputs | 2 |
| Schmitt Trigger Input | No |
| Supplier Device Package | 16-QFN (3x3) |
| Number of Circuits | 2 |
