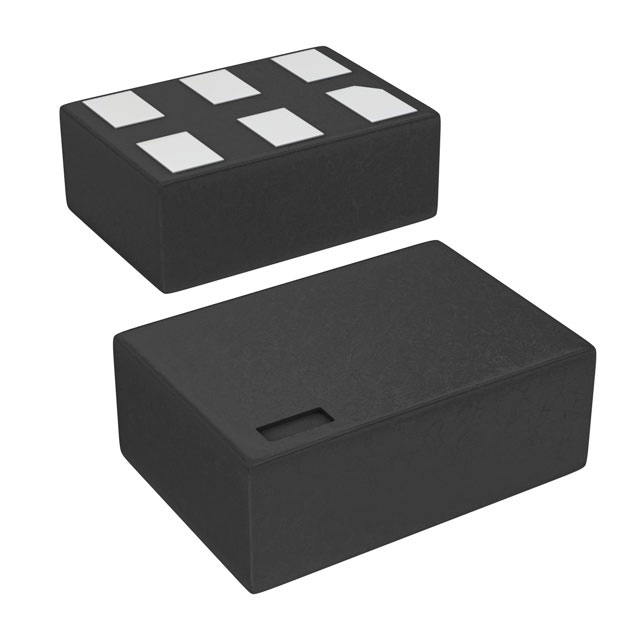

74AUP1G57L6X
IC GATE UNIV 2INPUT 6-MICROPAKManufacturer: onsemi
Categories: Gates and Inverters - Multi-Function, Configurable
Quality Control: Learn More
The onsemi 74AUP1G57L6X is a highly versatile single-ended configurable multiple function gate from the 74AUP series. This device integrates a single configurable circuit with three inputs, allowing for flexible logic implementation. Designed for surface mount applications, it is supplied in a compact 6-MicroPak (6-UFDFN) package on tape and reel. With a wide operating voltage range from 0.8V to 3.6V, and output current capabilities of 4mA high and 4mA low, it is suitable for low-power applications. The 74AUP1G57L6X finds utility in various industries including consumer electronics, industrial automation, and telecommunications, where its configurable nature and small footprint are advantageous. It operates reliably within a temperature range of -40°C to 85°C.
Additional Information
Series: 74AUPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN |
| Output Type | Single-Ended |
| Mounting Type | Surface Mount |
| Logic Type | Configurable Multiple Function |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 0.8V ~ 3.6V |
| Current - Output High, Low | 4mA, 4mA |
| Number of Inputs | 3 |
| Schmitt Trigger Input | No |
| Supplier Device Package | 6-MicroPak |
| Number of Circuits | 1 |
