NL17SZ74USG-L22190
IC FF D-TYPE SNGL 1BIT US8Manufacturer: onsemi
Categories: Flip Flops
Quality Control: Learn More
The onsemi NL17SZ74USG-L22190 is a single D-type flip-flop from the 17SZ series, featuring a positive edge trigger. This 1-bit element offers complementary outputs and includes asynchronous set and reset capabilities. It operates with a supply voltage range of 1.65V to 5.5V and supports clock frequencies up to 200 MHz. The device exhibits a maximum propagation delay of 5ns at 5V with a 50pF load, and a low quiescent current of 1 µA. Output drive capability is 32mA for both high and low states. Packaged in an 8-VFSOP (US8) with a 2.30mm width, it is supplied on tape and reel for surface mounting. This component is suitable for applications in consumer electronics, industrial control systems, and telecommunications infrastructure.
Additional Information
Series: 17SZRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

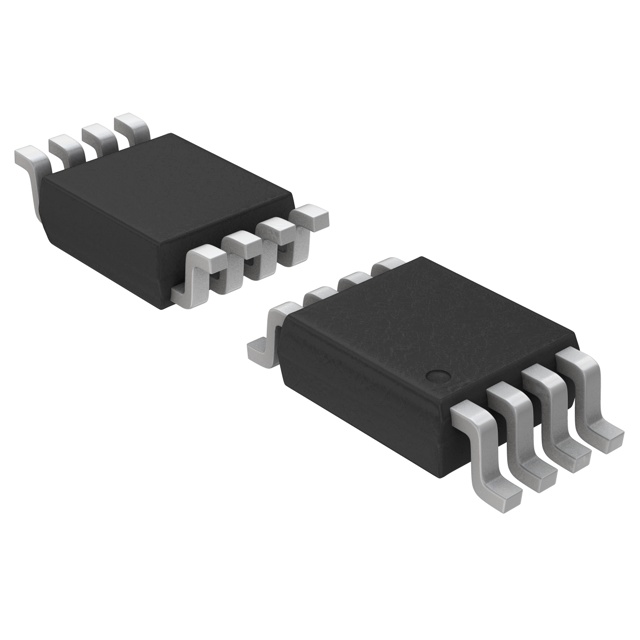

| Package / Case | 8-VFSOP (0.091"", 2.30mm Width) |
| Output Type | Complementary |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Iq) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 200 MHz |
| Input Capacitance | 2.5 pF |
| Supplier Device Package | US8 |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Number of Bits per Element | 1 |
