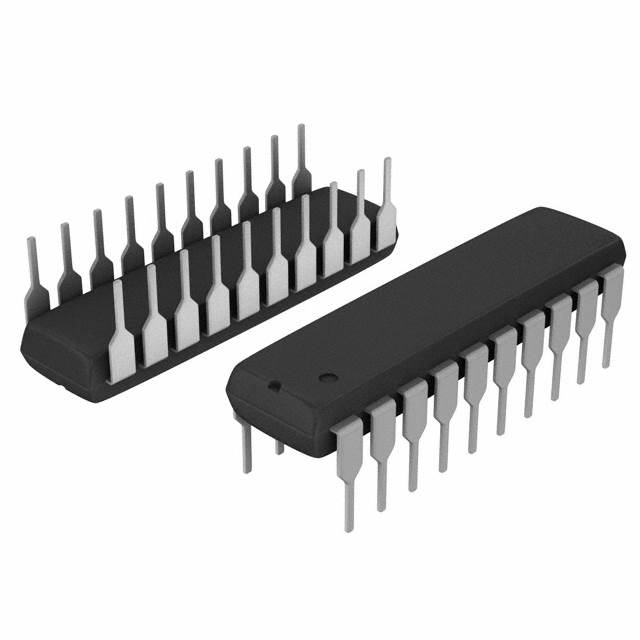

MC74HC273ANG
IC FF D-TYPE SNGL 8BIT 20DIPManufacturer: onsemi
Categories: Flip Flops
Quality Control: Learn More
The onsemi MC74HC273ANG is an 8-bit, single D-type flip-flop with a clear function, part of the 74HC series. This device features positive edge triggering and a non-inverted output. It operates with a supply voltage range of 2V to 6V and has a maximum clock frequency of 35 MHz. The MC74HC273ANG offers a propagation delay of 25ns at 6V and 50pF, with a quiescent current of just 4µA. Output drive capabilities are rated at 7.8mA for both high and low states. With a nominal input capacitance of 10pF, this component is suitable for through-hole mounting in a 20-PDIP package. The MC74HC273ANG finds application in various industrial automation, consumer electronics, and telecommunications systems requiring robust clocked storage.
Additional Information
Series: 74HCRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | Non-Inverted |
| Mounting Type | Through Hole |
| Number of Elements | 1 |
| Function | Reset |
| Type | D-Type |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 35 MHz |
| Input Capacitance | 10 pF |
| Supplier Device Package | 20-PDIP |
| Max Propagation Delay @ V, Max CL | 25ns @ 6V, 50pF |
| Number of Bits per Element | 8 |
