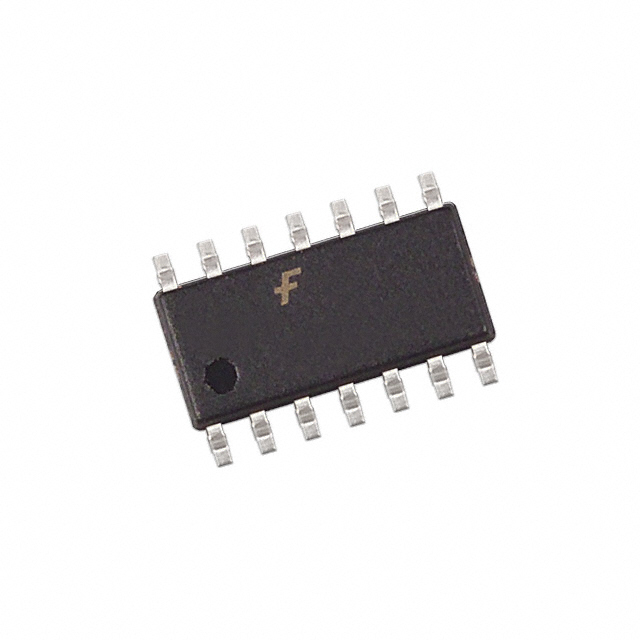

MM74HC393SJ
IC BINARY COUNTER DL 4BIT 14SOPManufacturer: onsemi
Categories: Counters, Dividers
Quality Control: Learn More
onsemi MM74HC393SJ is a dual, 4-bit binary ripple counter from the 74HC series. This high-speed CMOS device features two independent 4-bit counters, each triggered by a negative-going edge. The asynchronous clear input synchronously resets each counter to zero. With a maximum count rate of 50 MHz at 5V, it is suitable for digital timing applications. The MM74HC393SJ operates over a voltage range of 2V to 6V and an industrial temperature range of -40°C to 85°C. Packaged in a 14-SOP (Surface Mount) configuration, this component finds application in telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: 74HCRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-SOIC (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Logic Type | Binary Counter |
| Reset | Asynchronous |
| Operating Temperature | -40°C ~ 85°C |
| Direction | Up |
| Trigger Type | Negative Edge |
| Timing | - |
| Supplier Device Package | 14-SOP |
| Voltage - Supply | 2 V ~ 6 V |
| Count Rate | 50 MHz |
| Number of Bits per Element | 4 |
