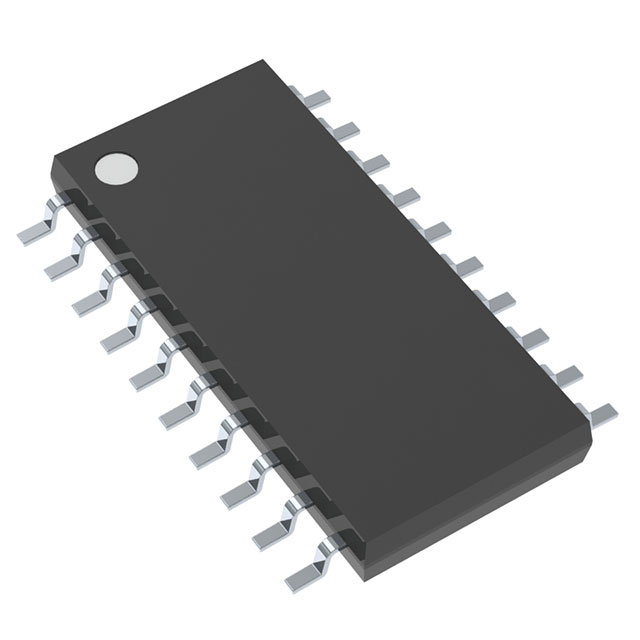

MC74HC245AFG
IC TXRX NON-INVERT 6V SOEIAJ-20Manufacturer: onsemi
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
onsemi's MC74HC245AFG is an 8-bit, non-inverting transceiver from the 74HC series, designed for robust digital signal routing. This component features 3-state outputs with a drive capability of 7.8mA at both high and low levels, ensuring reliable signal transmission. Operating across a wide temperature range of -55°C to 125°C, it is suitable for demanding applications. The device supports a supply voltage range of 2V to 6V and utilizes SOEIAJ-20 packaging for surface mounting. Its single-element, 8-bit architecture makes it a versatile choice for various logic interfacing and bus buffering requirements in industrial automation, telecommunications, and consumer electronics.
Additional Information
Series: 74HCRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.209"", 5.30mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Supplier Device Package | SOEIAJ-20 |
Request a Quote
