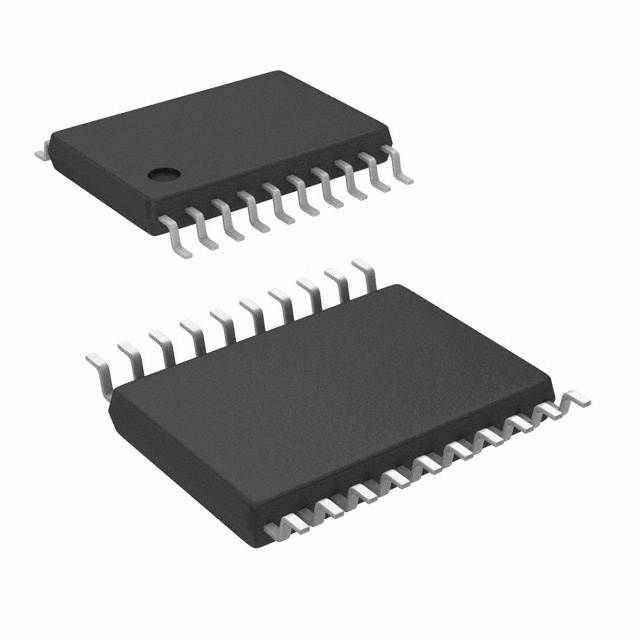

MC74HC245ADT
IC TXRX NON-INVERT 6V 20TSSOPManufacturer: onsemi
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
onsemi MC74HC245ADT is a high-speed CMOS octal transceiver featuring non-inverting buffer logic. This component, part of the 74HC series, offers 8 bits per element with a single element configuration. It is designed for 3-state output operation with a voltage supply range of 2V to 6V. The device exhibits output current capabilities of 7.8mA for both high and low states. The MC74HC245ADT is housed in a 20-TSSOP package, suitable for surface mounting with a package width of 4.40mm. Operating across an industrial temperature range of -55°C to 125°C (TA), this transceiver finds application in diverse electronic systems including industrial automation and telecommunications.
Additional Information
Series: 74HCRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Supplier Device Package | 20-TSSOP |
