74VCXH162244MTX
IC BUF NON-INVERT 3.6V 48TSSOPManufacturer: onsemi
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
The onsemi 74VCXH series 74VCXH162244MTX is a high-performance, 16-bit buffer featuring non-inverting logic across four independent 4-bit elements. This device offers 3-state outputs with typical drive strength of 12mA high and 12mA low. Operating from a wide supply voltage range of 1.4V to 3.6V, it is suitable for applications requiring low-voltage operation and high-speed signal integrity. The 48-TSSOP package facilitates efficient board space utilization. This buffer is commonly employed in telecommunications, industrial automation, and consumer electronics where reliable signal buffering and level shifting are critical. The 74VCXH162244MTX is supplied in a Tape & Reel (TR) package for automated assembly processes.
Additional Information
Series: 74VCXHRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TFSOP (0.240"", 6.10mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.4V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 12mA, 12mA |
| Supplier Device Package | 48-TSSOP |
Request a Quote
Clients Also Buy

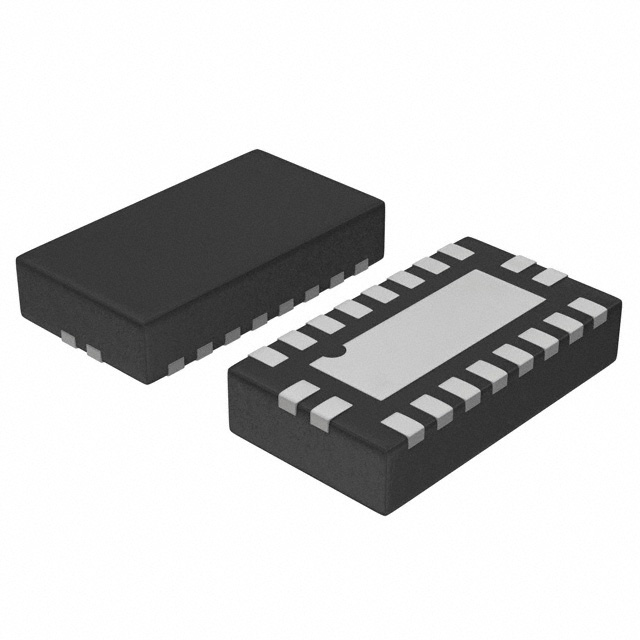

74VCXH245MNR2
