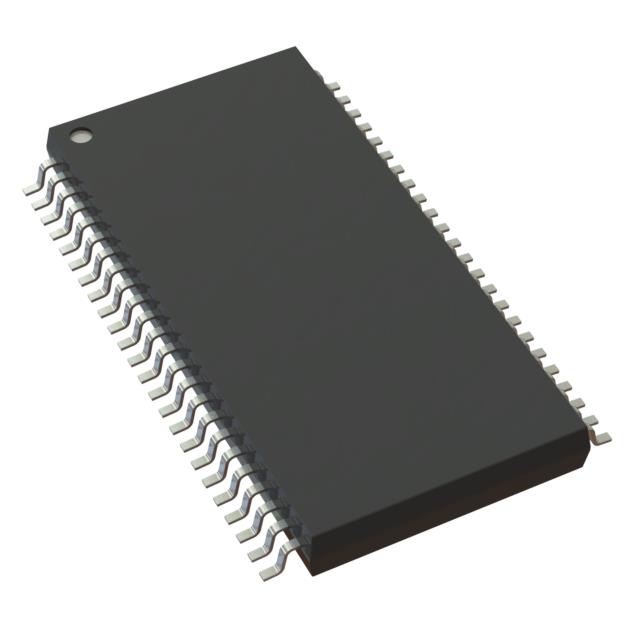

74LCX162244MTDX
IC BUF NON-INVERT 3.6V 48TSSOPManufacturer: onsemi
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
The onsemi 74LCX162244MTDX is a high-performance, low-voltage CMOS buffer featuring non-inverting logic. This 3-state buffer is organized as four independent 4-bit buffers, providing a total of 16 bits of buffering. It supports a wide supply voltage range from 2V to 3.6V, with a nominal operating voltage of 3.3V. The device offers symmetrical drive capability, delivering 12mA at both high and low output levels. Its 48-TSSOP package ensures a compact footprint for surface-mount applications. The 74LCX162244MTDX is commonly utilized in industrial automation, consumer electronics, and telecommunications systems requiring robust signal buffering and level translation. Operating temperature range is -40°C to 85°C.
Additional Information
Series: 74LCXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TFSOP (0.240"", 6.10mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 12mA, 12mA |
| Supplier Device Package | 48-TSSOP |
