74ALVT16601DL,512
IC 18BIT UNVRSL BUS TXRX 56SSOPManufacturer: NXP USA Inc.
Categories: Universal Bus Functions
Quality Control: Learn More

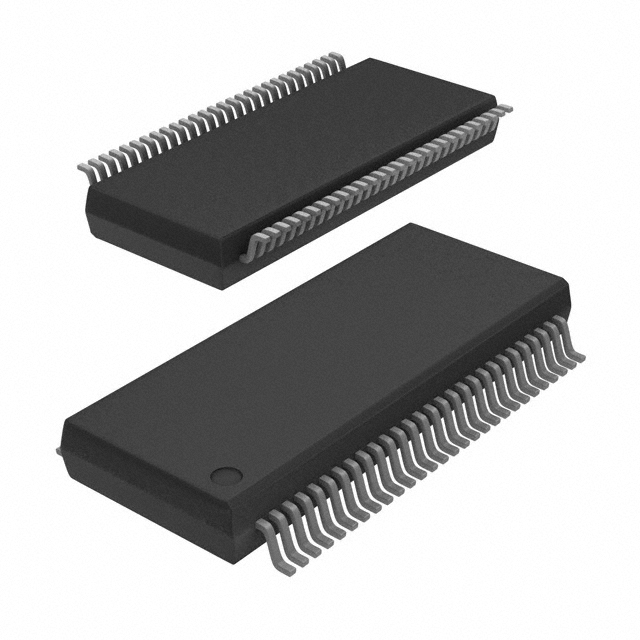

NXP USA Inc. 74ALVT series universal bus transceiver, part number 74ALVT16601DL-512, is an 18-bit, non-inverting buffer/line driver designed for high-speed bus applications. This device features a 56-SSOP package suitable for surface mount assembly. It supports dual supply voltages, operating from 2.3V to 2.7V and 3V to 3.6V. The transceiver offers robust drive capabilities with output currents of 8mA/24mA and 32mA/64mA at high and low states, respectively. Its design is optimized for applications requiring efficient data transfer and bus buffering, commonly found in computing, telecommunications, and industrial automation systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: 74ALVTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 56-BSSOP (0.295"", 7.50mm Width) |
| Number of Circuits | 18-Bit |
| Mounting Type | Surface Mount |
| Logic Type | Universal Bus Transceiver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 2.7V, 3V ~ 3.6V |
| Current - Output High, Low | 8mA, 24mA; 32mA, 64mA |
| Supplier Device Package | 56-SSOP |
