74ALVCH32501EC,557
IC UNIV BUS TXRX 36BIT 114LFBGAManufacturer: NXP USA Inc.
Categories: Universal Bus Functions
Quality Control: Learn More

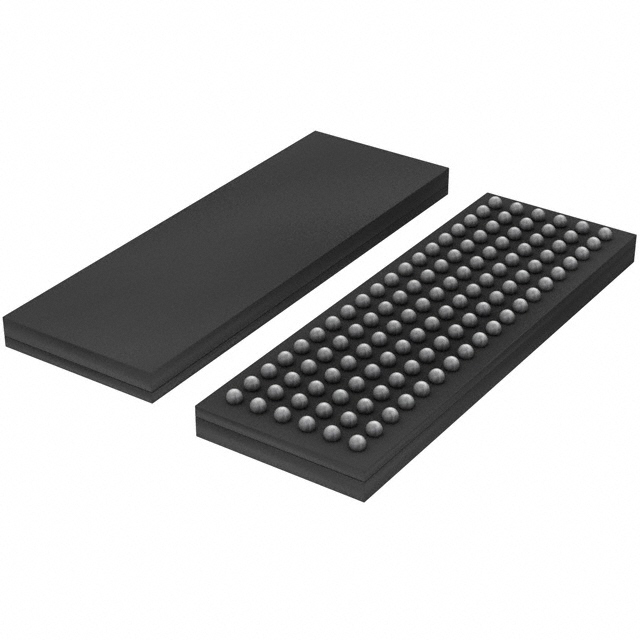

NXP USA Inc. 74ALVCH series universal bus transceiver, part number 74ALVCH32501EC-557, is a 36-bit bidirectional transceiver housed in a 114-LFBGA (16x5.5) package. This surface-mount device operates within a supply voltage range of 2.3V to 3.6V, offering robust performance with output drive capabilities of 24mA high and 24mA low. Designed for high-speed applications, this transceiver is suitable for use in telecommunications, industrial automation, and consumer electronics sectors. The 74ALVCH32501EC-557 provides efficient signal routing and buffering for complex digital systems. It is supplied in tray packaging.
Additional Information
Series: 74ALVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 114-LFBGA |
| Number of Circuits | 36-Bit |
| Mounting Type | Surface Mount |
| Logic Type | Universal Bus Transceiver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 3.6V |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 114-LFBGA (16x5.5) |
