74HC164PW,112
IC 8BIT SHIFT REGISTER 14-TSSOPManufacturer: NXP USA Inc.
Categories: Shift Registers
Quality Control: Learn More
NXP USA Inc. 74HC series 74HC164PW-112 is an 8-bit serial-in, parallel-out shift register. This device features two serial data inputs, A and B, which can be used independently or tied together for a single input. Data is shifted from the serial inputs to the parallel outputs on the rising edge of the clock pulse. The device includes an asynchronous master reset that clears all flip-flops. With a supply voltage range of 2V to 6V and an operating temperature of -40°C to 125°C, this component is suitable for applications in industrial automation, consumer electronics, and telecommunications. The 14-TSSOP package facilitates surface mount assembly.
Additional Information
Series: 74HCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

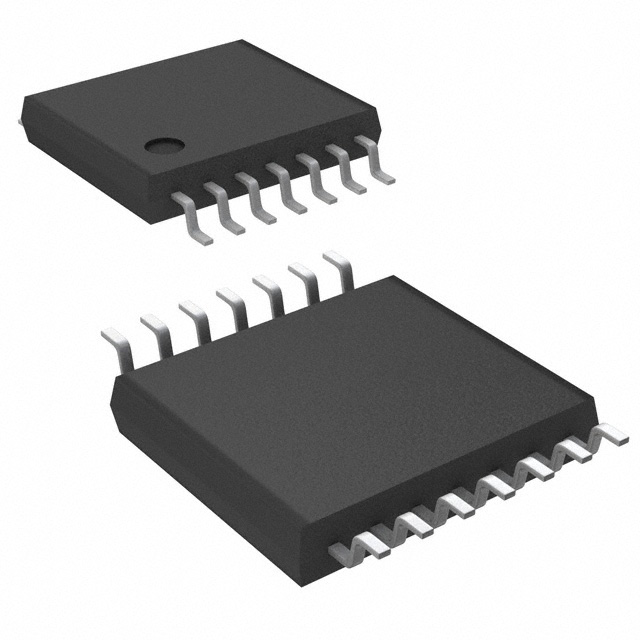

| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Push-Pull |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Function | Serial to Parallel |
| Logic Type | Shift Register |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2V ~ 6V |
| Supplier Device Package | 14-TSSOP |
| Number of Bits per Element | 8 |
