74HC164DB,118
NOW NEXPERIA 74HC164DB - SERIALManufacturer: NXP USA Inc.
Categories: Shift Registers
Quality Control: Learn More
NXP USA Inc. 74HC series shift register, part number 74HC164DB-118, is an 8-bit serial-in, parallel-out shift register. This device features two serial data inputs (DS1 and DS2) and an asynchronous master reset (MR). Data is shifted from DS1 or DS2 to the first flip-flop, and from each flip-flop to the next, on the positive edge of the clock input (CLK). The clear (CLR) input is asynchronous and active high, overriding all other inputs. The 74HC164DB-118 offers a wide operating voltage range of 2V to 6V and operates within an industrial temperature range of -40°C to 125°C. Its 14-SSOP surface-mount package is suitable for applications in industrial automation, consumer electronics, and telecommunications. The push-pull output type ensures robust signal driving capabilities.
Additional Information
Series: 74HCRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

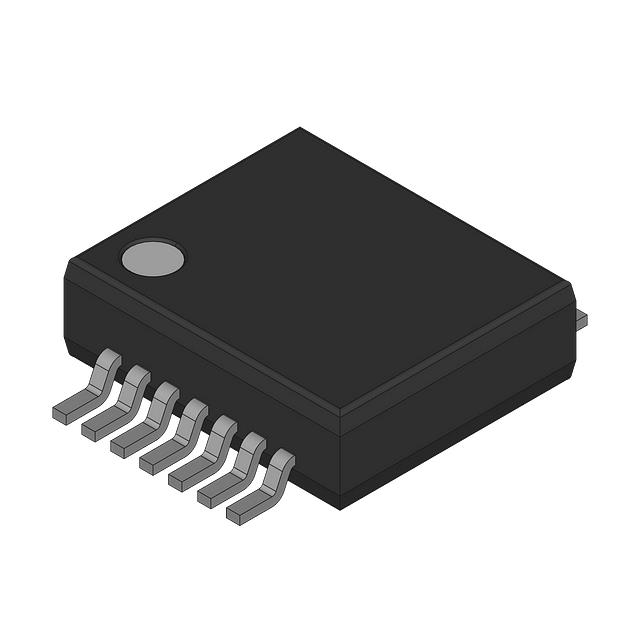

| Package / Case | 14-SSOP (0.209"", 5.30mm Width) |
| Output Type | Push-Pull |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Function | Serial to Parallel |
| Logic Type | Shift Register |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2V ~ 6V |
| Supplier Device Package | 14-SSOP |
| Number of Bits per Element | 8 |
