74LVCH32373AEC,518
IC 32BIT TRANSP D LATCH 96LFBGAManufacturer: NXP USA Inc.
Categories: Latches
Quality Control: Learn More
NXP USA Inc. 74LVCH series D-Type Transparent Latch, part number 74LVCH32373AEC-518. This 32-bit transparent latch features 4 independent circuits, each providing an 8:8 data flow with tri-state outputs. Optimized for high-speed operation, it offers a typical propagation delay of 3ns. Designed for surface mounting, the component is supplied in a 96-LFBGA (13.5x5.5) package, presented on tape and reel. It supports a wide supply voltage range of 1.2V to 3.6V and maintains a robust output drive capability of 24mA for both high and low states. This device is suitable for applications in telecommunications, computing, and industrial automation. The operating temperature range is -40°C to 85°C.
Additional Information
Series: 74LVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

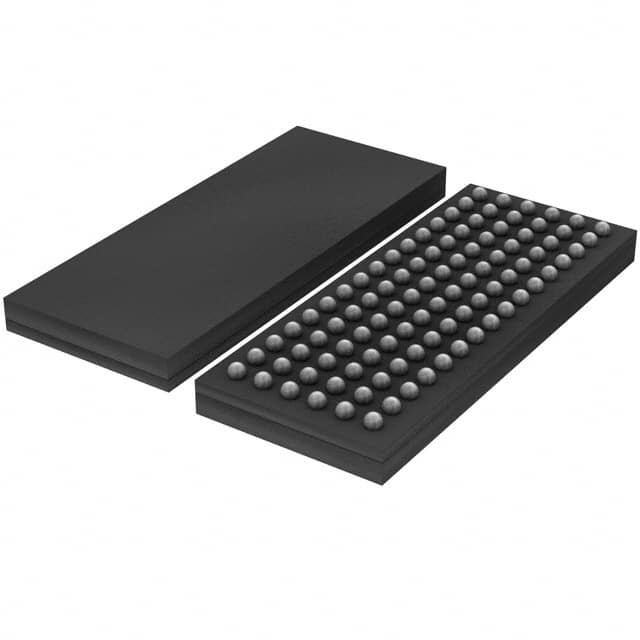

| Package / Case | 96-LFBGA |
| Output Type | Tri-State |
| Mounting Type | Surface Mount |
| Circuit | 8:8 |
| Logic Type | D-Type Transparent Latch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.2V ~ 3.6V |
| Independent Circuits | 4 |
| Current - Output High, Low | 24mA, 24mA |
| Delay Time - Propagation | 3ns |
| Supplier Device Package | 96-LFBGA (13.5x5.5) |
