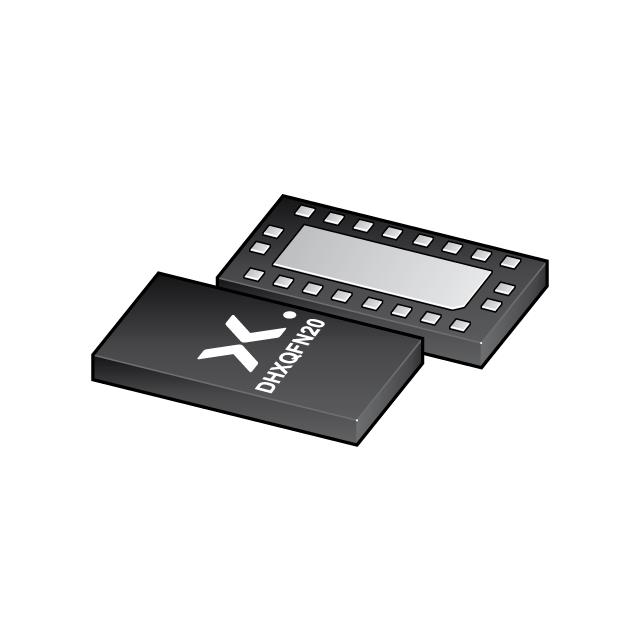

74LVC573ABXX
IC D-TYPE TRANSP SGL 8:8 20HXQFNManufacturer: NXP USA Inc.
Categories: Latches
Quality Control: Learn More
NXP USA Inc. 74LVC series D-Type transparent latch, part number 74LVC573ABXX. This 1-channel, 8:8 circuit features tri-state outputs, capable of sinking or sourcing 24mA. With a propagation delay of 1.5ns, it supports supply voltages from 1.2V to 3.6V. The component is housed in a 20-DHXQFN (4.5x2.5) package, suitable for surface mounting. Operating temperature range is -40°C to 125°C. This device is commonly utilized in industrial automation, telecommunications infrastructure, and automotive electronics.
Additional Information
Series: 74LVCRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-XFQFN Exposed Pad |
| Output Type | Tri-State |
| Mounting Type | Surface Mount |
| Circuit | 8:8 |
| Logic Type | D-Type Transparent Latch |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.2V ~ 3.6V |
| Independent Circuits | 1 |
| Current - Output High, Low | 24mA, 24mA |
| Delay Time - Propagation | 1.5ns |
| Supplier Device Package | 20-DHXQFN (4.5x2.5) |
