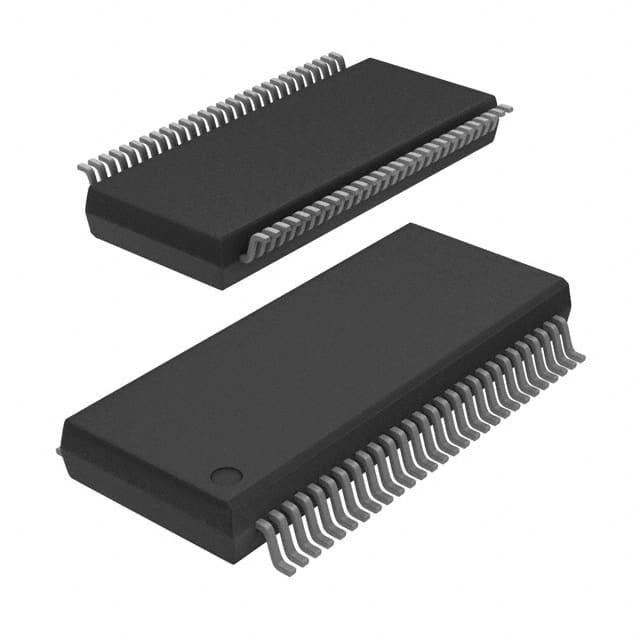

74ALVT16260DL,518
IC 12-24BIT MUX D LATCH 56SSOPManufacturer: NXP USA Inc.
Categories: Latches
Quality Control: Learn More
NXP USA Inc. 74ALVT series D-Type Transparent Latch, part number 74ALVT16260DL-518, is a 12:24 circuit multiplexer with a tri-state output. This 56-SSOP package component offers a single independent circuit and features 2.8ns propagation delay. Designed for surface mounting, it operates within a voltage supply range of 2.3V to 2.7V and an ambient temperature range of -40°C to 85°C. The output current capabilities are 8mA for high and 24mA for low. This device finds application in various industrial and consumer electronics sectors requiring high-speed data buffering and signal routing.
Additional Information
Series: 74ALVTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 56-BSSOP (0.295"", 7.50mm Width) |
| Output Type | Tri-State |
| Mounting Type | Surface Mount |
| Circuit | 12:24 |
| Logic Type | D-Type Transparent Latch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 2.7V |
| Independent Circuits | 1 |
| Current - Output High, Low | 8mA, 24mA |
| Delay Time - Propagation | 2.8ns |
| Supplier Device Package | 56-SSOP |
