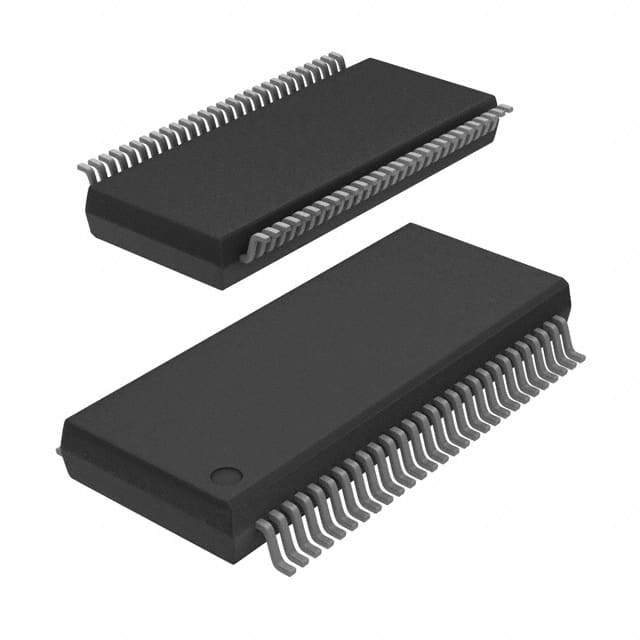

74ALVT16260DL,512
IC 12-24BIT MUX D LATCH 56-SSOPManufacturer: NXP USA Inc.
Categories: Latches
Quality Control: Learn More
NXP USA Inc. 74ALVT Series D-Type Transparent Latch, part number 74ALVT16260DL-512, offers a 12:24 multiplexing capability with independent circuits. This device features tri-state outputs for enhanced system flexibility and operates with a supply voltage range of 2.3V to 2.7V. With a propagation delay of 2.8ns, it is suitable for high-speed applications. The 74ALVT16260DL-512 is housed in a compact 56-SSOP (0.295", 7.50mm Width) package, designed for surface mounting. It delivers 8mA output high and 24mA output low current. This component finds application in various sectors including telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: 74ALVTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 56-BSSOP (0.295"", 7.50mm Width) |
| Output Type | Tri-State |
| Mounting Type | Surface Mount |
| Circuit | 12:24 |
| Logic Type | D-Type Transparent Latch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 2.7V |
| Independent Circuits | 1 |
| Current - Output High, Low | 8mA, 24mA |
| Delay Time - Propagation | 2.8ns |
| Supplier Device Package | 56-SSOP |
