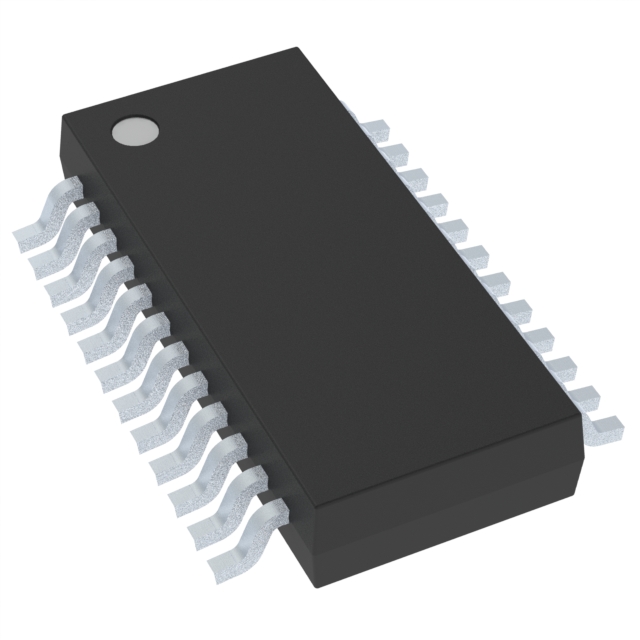

74ABT841PW,118
IC 10BIT BUS INTFC LATCH 24TSSOPManufacturer: NXP USA Inc.
Categories: Latches
Quality Control: Learn More
NXP USA Inc. introduces the 74ABT841PW-118, a 10-bit transparent D-type latch from the 74ABT series. This device features a 10:10 circuit configuration with independent channels and tri-state outputs, designed for robust bus interfacing. Operating from a 4.5V to 5.5V supply, it offers a typical propagation delay of 4ns. The 74ABT841PW-118 is supplied in a 24-TSSOP package suitable for surface mounting. Key electrical specifications include output drive capabilities of 32mA high and 64mA low. This component is commonly utilized in telecommunications and industrial automation applications requiring high-speed data buffering and transfer. The packaging is provided on Tape & Reel (TR).
Additional Information
Series: 74ABTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Tri-State |
| Mounting Type | Surface Mount |
| Circuit | 10:10 |
| Logic Type | D-Type Transparent Latch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Independent Circuits | 1 |
| Current - Output High, Low | 32mA, 64mA |
| Delay Time - Propagation | 4ns |
| Supplier Device Package | 24-TSSOP |
Request a Quote
