N74F32D,602

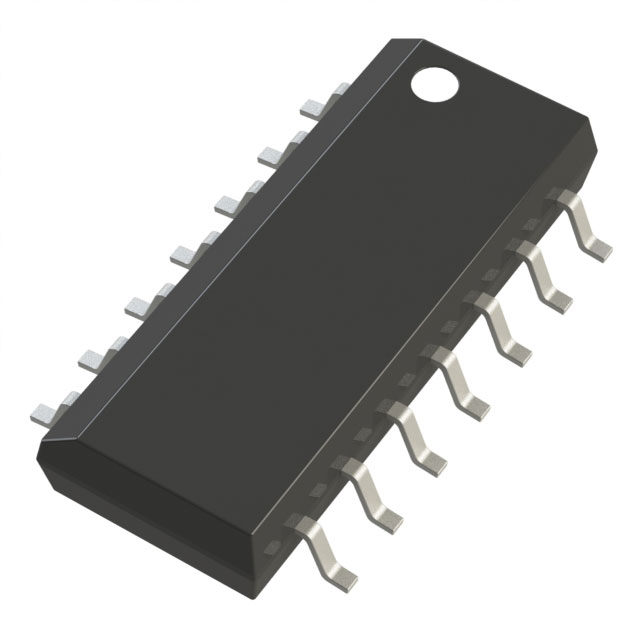

IC GATE OR 4CH 2-INP 14SOManufacturer: NXP USA Inc.
Categories: Gates and Inverters
Quality Control: Learn More
NXP USA Inc. 74F Series N74F32D-602 is a quad 2-input OR gate logic IC. This device features four independent OR gates, each with two inputs and a single output. Designed for operation from a 4.5V to 5.5V supply, it exhibits a maximum propagation delay of 5.6ns at 5V and 50pF. The input logic levels are specified at 0.8V for low and 2V for high. Output drive capabilities are 1mA for high and 20mA for low. The N74F32D-602 is housed in a 14-SOIC package, suitable for surface mounting. Typical applications include digital logic systems, control circuitry, and signal processing.
Additional Information
Series: 74FRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | OR Gate |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 1mA, 20mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-SO |
| Input Logic Level - High | 2V |
| Input Logic Level - Low | 0.8V |
| Max Propagation Delay @ V, Max CL | 5.6ns @ 5V, 50pF |
| Number of Circuits | 4 |
