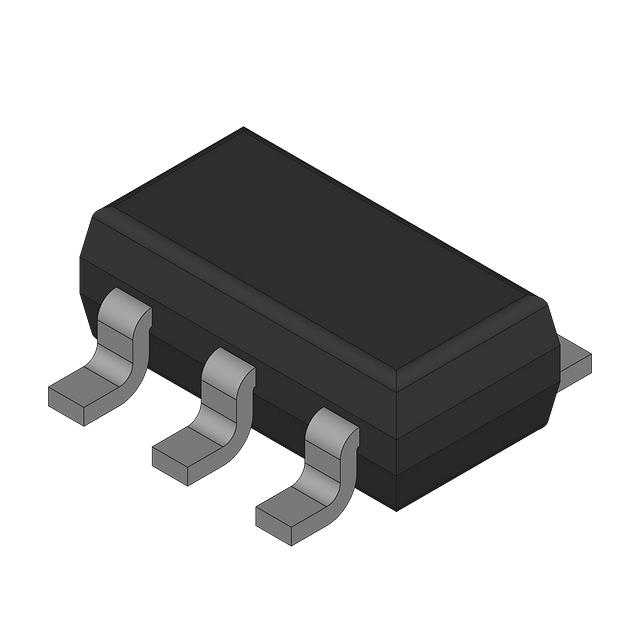

74LVC1G86GV-Q100125
IC GATE XORManufacturer: NXP USA Inc.
Categories: Gates and Inverters
Quality Control: Learn More
XOR (Exclusive OR) IC 1 Channel 5-TSOP
Additional Information
Series: 74LVCRoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Logic Type | XOR (Exclusive OR) |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Output High, Low | 32mA, 32mA |
| Number of Inputs | 2 |
| Supplier Device Package | 5-TSOP |
| Input Logic Level - High | 1.7V ~ 2V |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Max Propagation Delay @ V, Max CL | 5.5ns @ 5V, 50pF |
| Grade | Automotive |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 4 µA |
| Qualification | AEC-Q100 |
