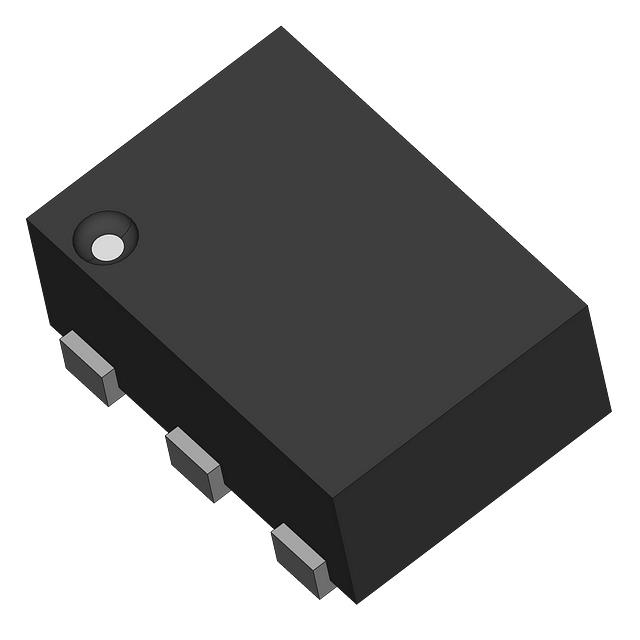

74LVC1G11GXZ
IC SNGL 3-INPManufacturer: NXP USA Inc.
Categories: Gates and Inverters
Quality Control: Learn More
AND Gate IC 1 Channel 6-X2SON (1.0x0.8)
Additional Information
Series: 74LVCRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-XFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Logic Type | AND Gate |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Output High, Low | 32mA, 32mA |
| Number of Inputs | 3 |
| Supplier Device Package | 6-X2SON (1.0x0.8) |
| Input Logic Level - High | 1.7V ~ 2V |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Max Propagation Delay @ V, Max CL | 4.4ns @ 5V, 50pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 4 µA |
