74LVCH32374AEC,557
IC FF D-TYPE QUAD 8BIT 96LFBGAManufacturer: NXP USA Inc.
Categories: Flip Flops
Quality Control: Learn More
The NXP USA Inc. 74LVCH series features the 74LVCH32374AEC-557, a quad, 8-bit D-type flip-flop with a positive edge trigger. This device operates with a supply voltage range of 1.65V to 3.6V and supports a clock frequency of up to 300 MHz. Each of the four 8-bit elements provides Tri-State, non-inverted outputs capable of sourcing and sinking 24mA. With a maximum propagation delay of 5.4ns at 3.3V and 50pF, and an input capacitance of 5pF, this component is designed for high-speed applications. The 74LVCH32374AEC-557 is housed in a 96-LFBGA package, suitable for surface mounting. Its low quiescent current of 40 µA makes it efficient for power-sensitive designs. This component finds application in areas such as telecommunications, industrial control, and consumer electronics. The operating temperature range is -40°C to 125°C (TA).
Additional Information
Series: 74LVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

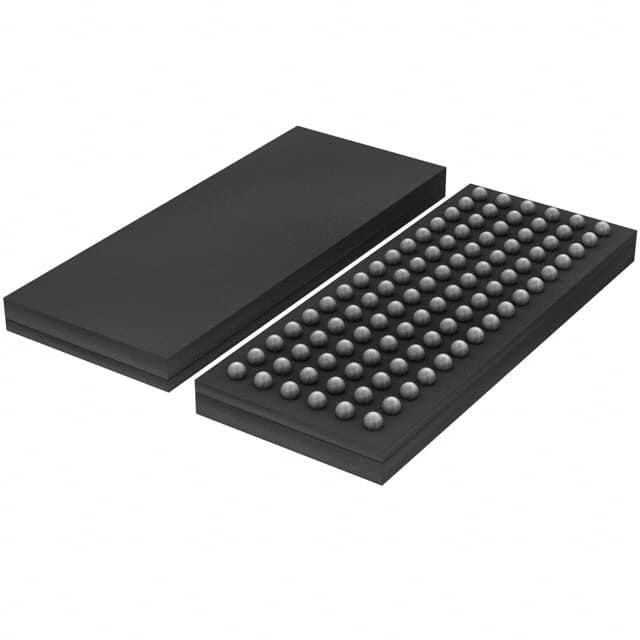

| Package / Case | 96-LFBGA |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Function | Standard |
| Type | D-Type |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Iq) | 40 µA |
| Current - Output High, Low | 24mA, 24mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 300 MHz |
| Input Capacitance | 5 pF |
| Supplier Device Package | 96-LFBGA (13.5x5.5) |
| Max Propagation Delay @ V, Max CL | 5.4ns @ 3.3V, 50pF |
| Number of Bits per Element | 8 |
