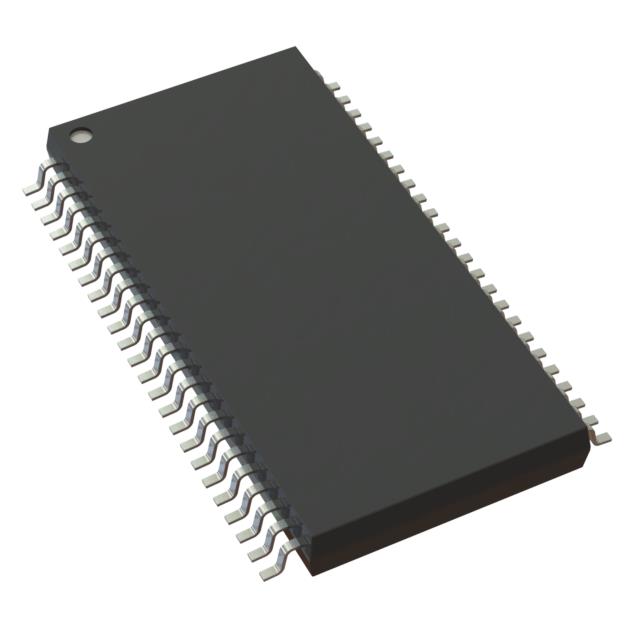

74ABT16374BDGG,512
IC FF D-TYPE DUAL 8BIT 48TSSOPManufacturer: NXP USA Inc.
Categories: Flip Flops
Quality Control: Learn More
NXP USA Inc. 74ABT series D-type flip-flop, part number 74ABT16374BDGG-512, offers dual 8-bit positive edge-triggered registers. This component features tri-state, non-inverted outputs capable of sourcing 32mA and sinking 64mA. With a maximum propagation delay of 4ns at 5V and 50pF, and a clock frequency reaching 260 MHz, it is suitable for high-speed digital applications. The device operates over a voltage range of 4.5V to 5.5V and has a quiescent current of 2mA. Housed in a 48-TSSOP package, the 74ABT16374BDGG-512 is commonly employed in telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: 74ABTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 48-TFSOP (0.240"", 6.10mm Width) |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Function | Standard |
| Type | D-Type |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 2 mA |
| Current - Output High, Low | 32mA, 64mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 260 MHz |
| Input Capacitance | 4 pF |
| Supplier Device Package | 48-TSSOP |
| Max Propagation Delay @ V, Max CL | 4ns @ 5V, 50pF |
| Number of Bits per Element | 8 |
