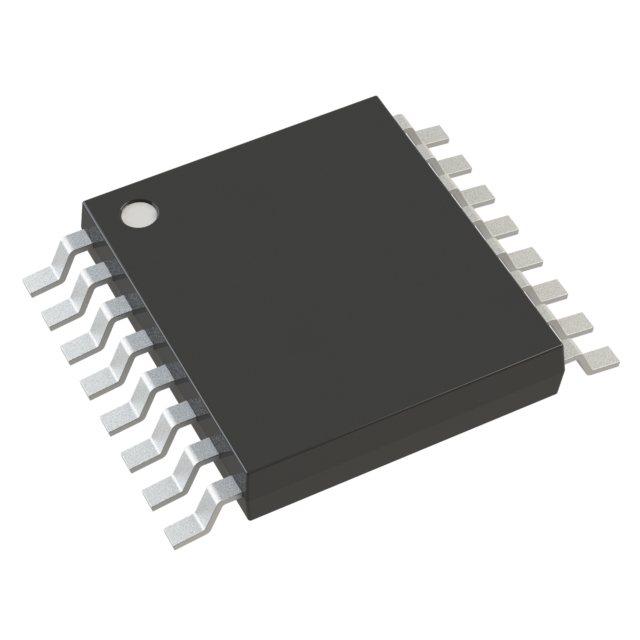

74LV4020PW,118
IC BINARY COUNTER 14BIT 16TSSOPManufacturer: NXP USA Inc.
Categories: Counters, Dividers
Quality Control: Learn More
NXP USA Inc. 74LV series 74LV4020PW-118 is a 14-bit asynchronous binary ripple counter. This device features a negative edge trigger and an asynchronous reset input. Designed for high-speed operation, it offers a count rate of up to 100 MHz. The logic is implemented in a single 14-bit element, providing a compact solution for counting applications. Operating across a wide voltage range of 1V to 5.5V, the 74LV4020PW-118 is suitable for diverse power supply environments. It is packaged in a 16-TSSOP (0.173", 4.40mm Width) and supplied on tape and reel. This component is commonly utilized in industrial automation, consumer electronics, and telecommunications systems where reliable counting and frequency division are critical. The operating temperature range is -40°C to 125°C.
Additional Information
Series: 74LVRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Logic Type | Binary Counter |
| Reset | Asynchronous |
| Operating Temperature | -40°C ~ 125°C |
| Direction | Up |
| Trigger Type | Negative Edge |
| Timing | - |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply | 1 V ~ 5.5 V |
| Count Rate | 100 MHz |
| Number of Bits per Element | 14 |
