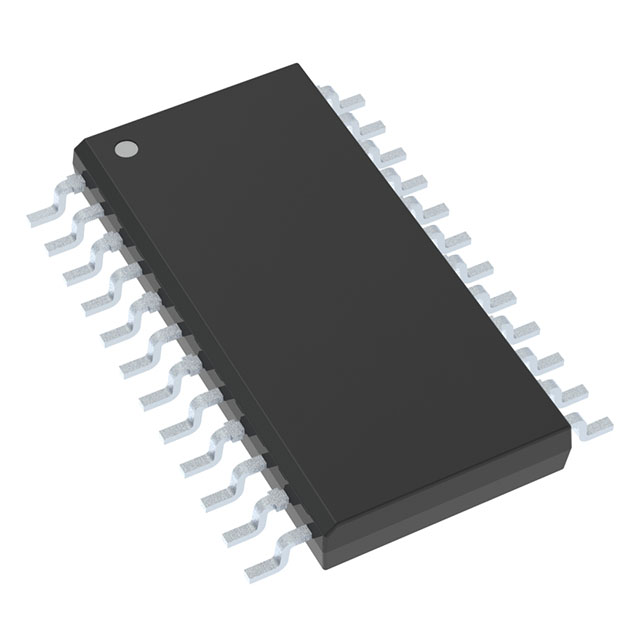

74HC4059D,112
IC DIVIDER BY N 16-BIT 24SOManufacturer: NXP USA Inc.
Categories: Counters, Dividers
Quality Control: Learn More
NXP USA Inc. 74HC4059D-112 is a 16-bit divide-by-N counter IC from the 74HC series. This single-element device offers a count rate of up to 43 MHz and operates on a supply voltage range of 2 V to 6 V. Featuring positive edge triggering and an asynchronous reset function, it supports synchronous timing. The device is housed in a 24-SOIC (0.295", 7.50mm width) package, suitable for surface mount applications. Its divide-by-N logic capability makes it valuable in applications requiring precise frequency division across various industries including telecommunications and industrial control. The operating temperature range is -40°C to 125°C.
Additional Information
Series: 74HCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Logic Type | Divide-by-N |
| Reset | Asynchronous |
| Operating Temperature | -40°C ~ 125°C |
| Direction | Down |
| Trigger Type | Positive Edge |
| Timing | Synchronous |
| Supplier Device Package | 24-SO |
| Voltage - Supply | 2 V ~ 6 V |
| Count Rate | 43 MHz |
| Number of Bits per Element | 16 |
