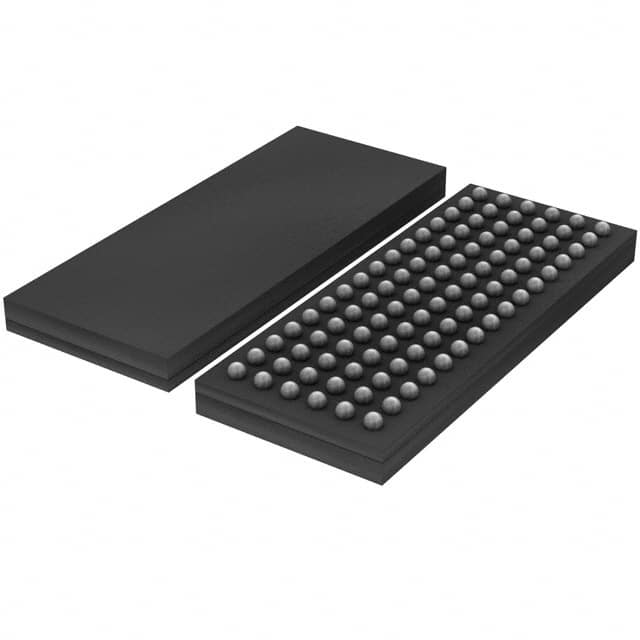

74LVTH322245EC,551
IC TXRX NON-INVERT 3.6V 96LFBGAManufacturer: NXP USA Inc.
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
The NXP USA Inc. 74LVTH322245EC-551 is a high-performance, octal universal bus transceiver featuring non-inverting, 3-state outputs. This device offers four independent 8-bit elements, each capable of bidirectional data flow. Operating within a supply voltage range of 2.7V to 3.6V, it delivers consistent output drive capabilities of 12mA for both high and low states. The 96-LFBGA package, measuring 13.5x5.5mm, is designed for efficient surface mounting in compact designs. Its robust construction and operational temperature range of -40°C to 85°C make it suitable for demanding applications across industrial automation, telecommunications infrastructure, and consumer electronics.
Additional Information
Series: 74LVTHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 96-LFBGA |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 12mA, 12mA |
| Supplier Device Package | 96-LFBGA (13.5x5.5) |
