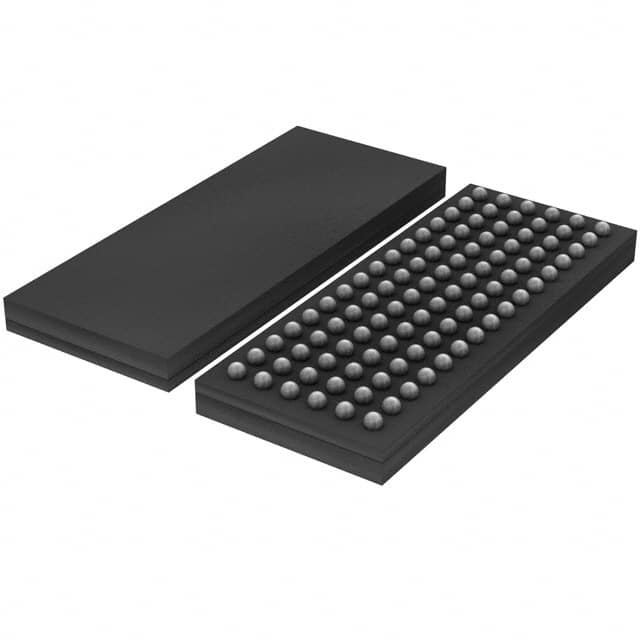

74LVCH32245AEC,557
IC TXRX NON-INVERT 3.6V 96LFBGAManufacturer: NXP USA Inc.
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
NXP USA Inc. 74LVCH series transceiver, part number 74LVCH32245AEC-557. This 4-element, 8-bit per element transceiver features non-inverting logic and 3-state outputs, capable of driving 24mA high and low. Designed for surface mounting, it utilizes a 96-LFBGA (13.5x5.5) package. The operating voltage range is 1.2V to 3.6V, with operation specified across an ambient temperature range of -40°C to 125°C. This component is commonly employed in industrial automation, automotive systems, and high-speed communication infrastructure.
Additional Information
Series: 74LVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 96-LFBGA |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 1.2V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 96-LFBGA (13.5x5.5) |
