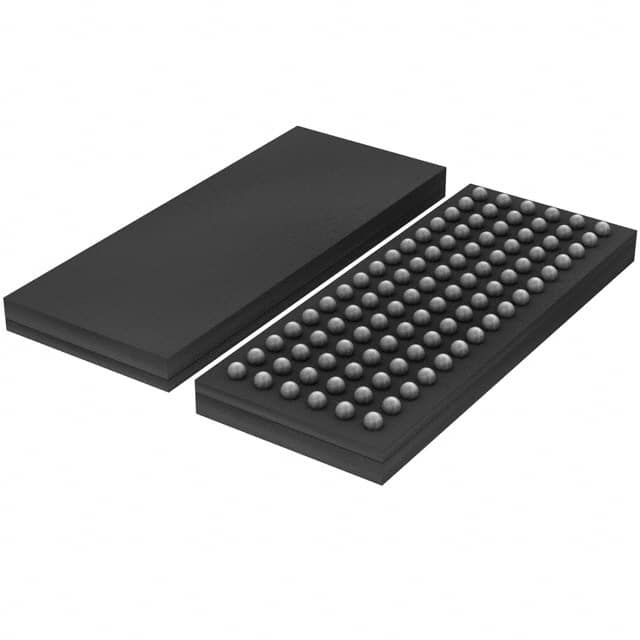

74LVCH32244AEC,518
IC BUF NON-INVERT 3.6V 96LFBGAManufacturer: NXP USA Inc.
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
NXP USA Inc.'s 74LVCH32244AEC-518 is an 8-element, non-inverting buffer featuring 4 bits per element and 3-state outputs. This advanced logic device operates within a 1.2V to 3.6V supply voltage range, delivering robust performance with ±24mA current drive capability for both high and low outputs. The 96-LFBGA (13.5x5.5) package ensures efficient board space utilization for surface mount applications. Designed for demanding environments, it maintains operational integrity across a -40°C to 85°C ambient temperature range. This component is well-suited for applications in automotive, industrial automation, and consumer electronics where high-speed signal buffering and reliable bus interfacing are critical. The 74LVCH series offers enhanced performance characteristics for modern digital systems.
Additional Information
Series: 74LVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 96-LFBGA |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 8 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.2V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 96-LFBGA (13.5x5.5) |
