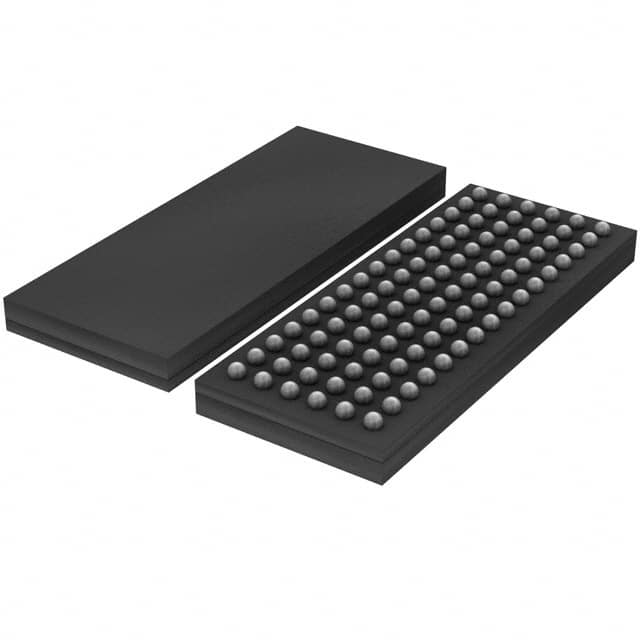

74LVCH322245AEC,51
IC TXRX NON-INVERT 3.6V 96LFBGAManufacturer: NXP USA Inc.
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
NXP USA Inc. 74LVCH Series Transceiver, Part Number 74LVCH322245AEC-51. This 3.6V, non-inverting transceiver features 4 elements, each with 8 bits, configurable for 3-state outputs. Designed for surface mount applications, it utilizes a 96-LFBGA package (13.5x5.5). The device supports a supply voltage range from 1.2V to 3.6V and offers output drive capabilities of 12mA for both high and low states. Operating within an ambient temperature range of -40°C to 125°C, this component is suitable for use in automotive and industrial applications. Packaging is provided on tape and reel.
Additional Information
Series: 74LVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 96-LFBGA |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 1.2V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 12mA, 12mA |
| Supplier Device Package | 96-LFBGA (13.5x5.5) |
Request a Quote
