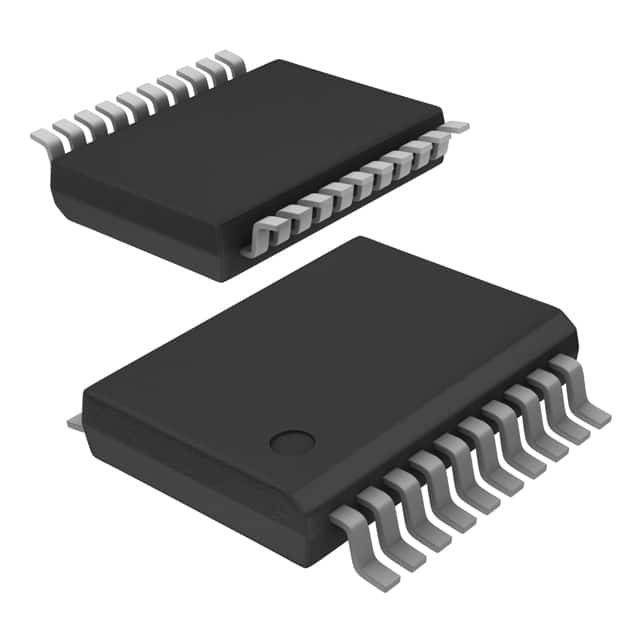

74ABT541DB,118
IC BUFF NON-INVERT 5.5V 20SSOPManufacturer: NXP USA Inc.
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
NXP USA Inc. 74ABT series buffer, part number 74ABT541DB-118. This is an 8-bit, non-inverting buffer with 3-state outputs, packaged in a 20-SSOP. The device operates from a 4.5V to 5.5V supply voltage range and offers flexible drive capabilities with output currents of 32mA high and 64mA low. Designed for surface mount applications, it is supplied in tape and reel. This component is suitable for use in industrial automation, telecommunications, and consumer electronics, where high-speed signal buffering and robust interfacing are critical. The 74ABT541DB-118 provides reliable performance across an operating temperature range of -40°C to 85°C.
Additional Information
Series: 74ABTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SSOP (0.209"", 5.30mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 32mA, 64mA |
| Supplier Device Package | 20-SSOP |
Request a Quote
