74HCT273D,652

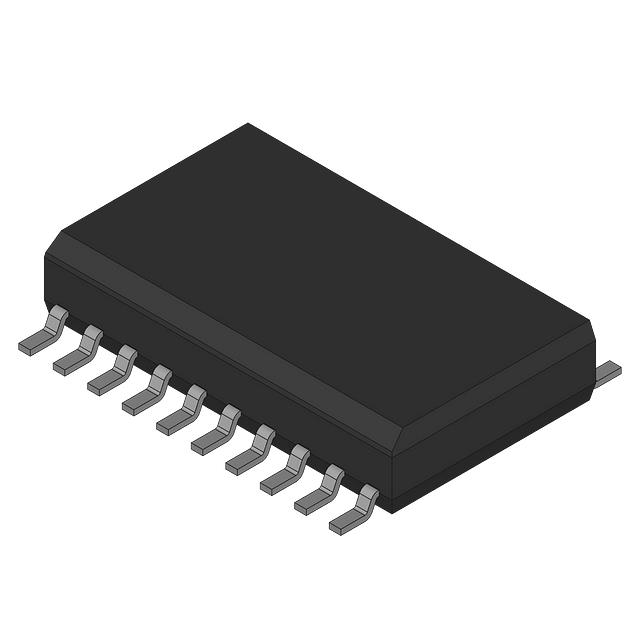

IC FF D-TYPE SNGL 8BIT 20SO

Quality Control: Learn More

NXP Semiconductors 74HCT series octal D-type flip-flop, part number 74HCT273D-652. This device features a single 8-bit element with positive edge triggering and a master reset function. It operates from a 4.5V to 5.5V supply voltage, with a maximum clock frequency of 36 MHz. The output type is non-inverted, capable of sourcing 4mA and sinking 5.2mA. Propagation delay is 30ns at 4.5V with a 50pF load. Quiescent current is a low 8 µA, with an input capacitance of 3.5 pF. The component is surface mounted in a 20-SOIC package with a 7.50mm width. This highly integrated component is suitable for applications in industrial automation and telecommunications. Operating temperature range is -40°C to 125°C.

Additional Information

Series: 74HCTRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:

Download Free CAD Model:

Technical Details:

Packaging	Bulk
Package / Case	20-SOIC (0.295"", 7.50mm Width)
Output Type	Non-Inverted
Mounting Type	Surface Mount
Number of Elements	1
Function	Master Reset
Type	D-Type
Operating Temperature	-40°C ~ 125°C (TA)
Voltage - Supply	4.5V ~ 5.5V
Current - Quiescent (Iq)	8 µA
Current - Output High, Low	4mA, 5.2mA
Trigger Type	Positive Edge
Clock Frequency	36 MHz
Input Capacitance	3.5 pF
Supplier Device Package	20-SO
Max Propagation Delay @ V, Max CL	30ns @ 4.5V, 50pF
Number of Bits per Element	8
