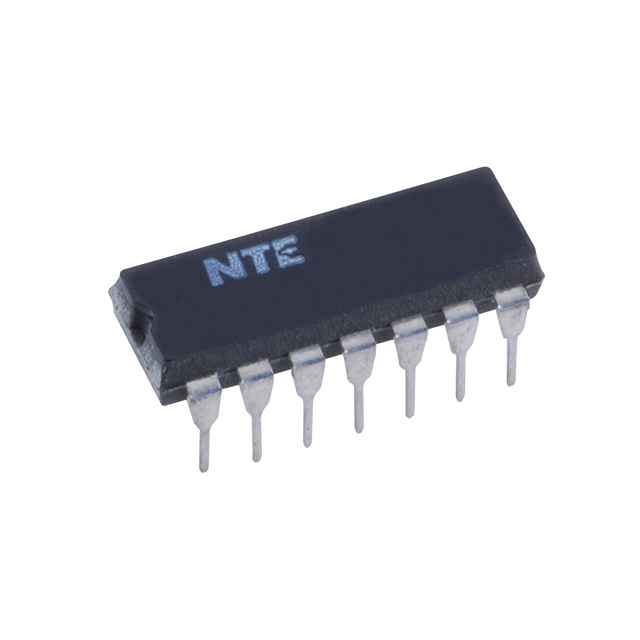

NTE74LS32
IC GATE OR 4CH 2-INP 14DIPManufacturer: NTE Electronics, Inc
Categories: Gates and Inverters
Quality Control: Learn More
OR Gate IC 4 Channel 14-DIP
Additional Information
Series: 74LSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | OR Gate |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Output High, Low | 400µA, 8mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-DIP |
| Input Logic Level - High | 2V |
| Input Logic Level - Low | 0.8V |
| Max Propagation Delay @ V, Max CL | 22ns @ 5V, 50pF |
| Number of Circuits | 4 |
