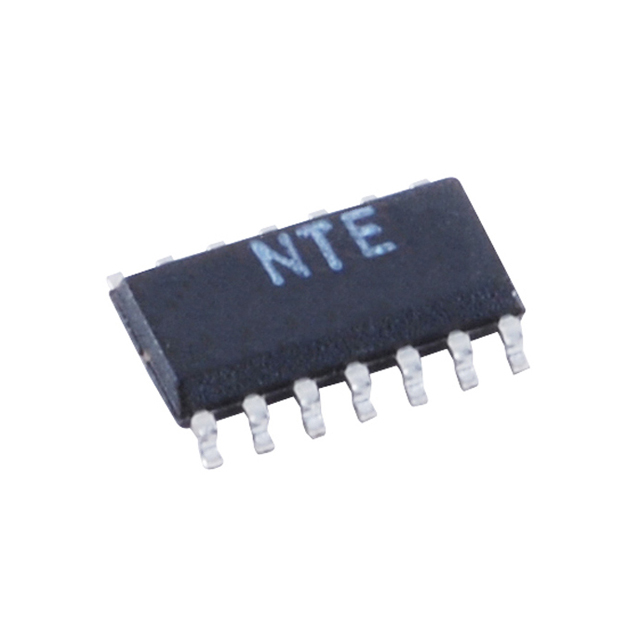

NTE74HCT14T
IC INVERT SCHMITT 6CH 1IN 14SOICManufacturer: NTE Electronics, Inc
Categories: Gates and Inverters
Quality Control: Learn More
Inverter IC 6 Channel Schmitt Trigger 14-SOIC
Additional Information
Series: 74HCTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Schmitt Trigger |
| Packaging | Bag |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | Inverter |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 4.8mA, 4.8mA |
| Number of Inputs | 1 |
| Supplier Device Package | 14-SOIC |
| Input Logic Level - High | 1.2V ~ 2.1V |
| Input Logic Level - Low | 0.5V ~ 1.4V |
| Max Propagation Delay @ V, Max CL | 25ns @ 5V, 50pF |
| Number of Circuits | 6 |
| Current - Quiescent (Max) | 10 µA |
Request a Quote
