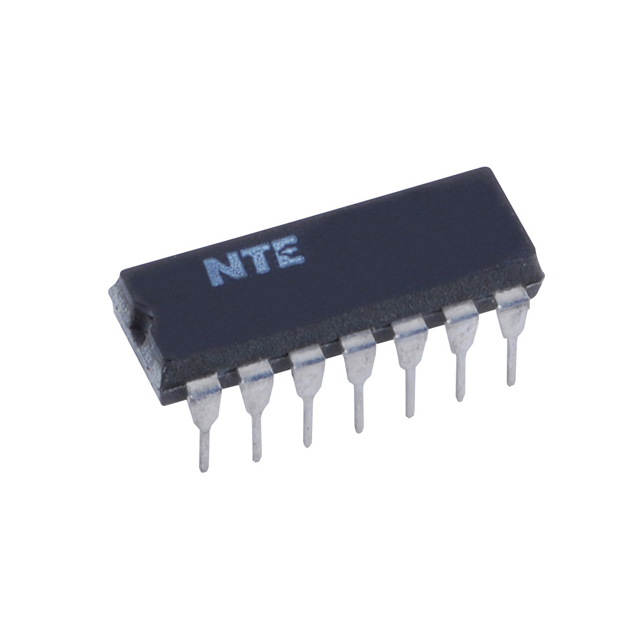

NTE74C14
IC INVERT SCHMITT 6CH 1INP 14DIPManufacturer: NTE Electronics, Inc
Categories: Gates and Inverters
Quality Control: Learn More
Inverter IC 6 Channel Schmitt Trigger 14-DIP
Additional Information
Series: 74CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Schmitt Trigger |
| Packaging | Bag |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | Inverter |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 15V |
| Current - Output High, Low | 8mA, 8mA |
| Number of Inputs | 1 |
| Supplier Device Package | 14-DIP |
| Input Logic Level - High | 4.3V ~ 12.9V |
| Input Logic Level - Low | 0.7V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 200ns @ 10V, 50pF |
| Number of Circuits | 6 |
| Current - Quiescent (Max) | 15 µA |
