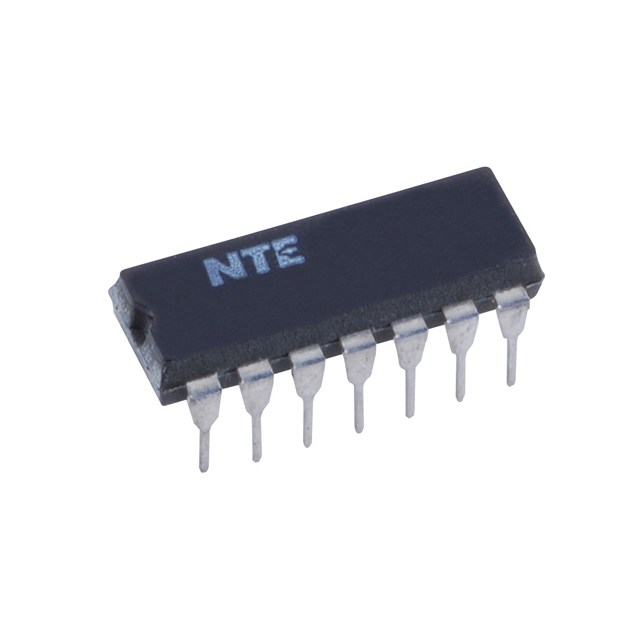

NTE4001B
IC GATE NOR 4CH 2-INP 14DIPManufacturer: NTE Electronics, Inc
Categories: Gates and Inverters
Quality Control: Learn More
NOR Gate IC 4 Channel 14-DIP
Additional Information
Series: 4000BRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | NOR Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3V ~ 18V |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-DIP |
| Input Logic Level - High | 3.5V ~ 11V |
| Input Logic Level - Low | 1.5V ~ 4V |
| Max Propagation Delay @ V, Max CL | 80ns @ 15V, 50pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 1 µA |
