NXS0506UPZ
IC TRANSLATOR BIDIR 16WLCSPManufacturer: Nexperia USA Inc.
Categories: Translators, Level Shifters
Quality Control: Learn More

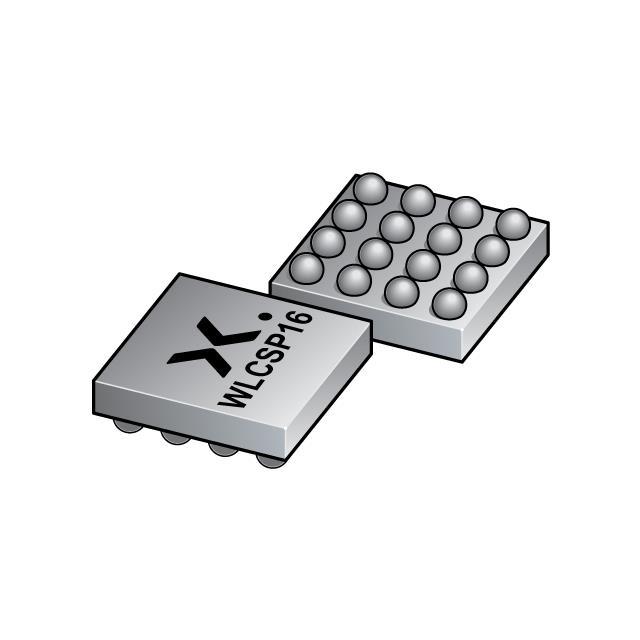

Nexperia USA Inc. NXS0506UPZ is a single-circuit, 6-channel, bidirectional voltage level translator. This component operates with VCCA ranging from 1.1V to 1.95V and VCCB from 1.7V to 3.6V, supporting data rates up to 104Mbps. The device is housed in a compact 16-WLCSP (1.46x1.46) package, designed for surface mount applications. Its bidirectional capability and wide operating voltage range make it suitable for diverse applications including mobile devices, consumer electronics, and automotive systems where interfacing between different voltage domains is critical. The NXS0506UPZ is supplied on a tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-XFBGA, WLCSP |
| Output Type | Non-Inverted |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 104Mbps |
| Supplier Device Package | 16-WLCSP (1.46x1.46) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 6 |
| Voltage - VCCA | 1.1 V ~ 1.95 V |
| Voltage - VCCB | 1.7 V ~ 3.6 V |
| Input Signal | - |
| Number of Circuits | 1 |
Request a Quote
