NXS0102UNZ
IC TRANSLTR BIDIRECTIONAL 8WLCSPManufacturer: Nexperia USA Inc.
Categories: Translators, Level Shifters
Quality Control: Learn More

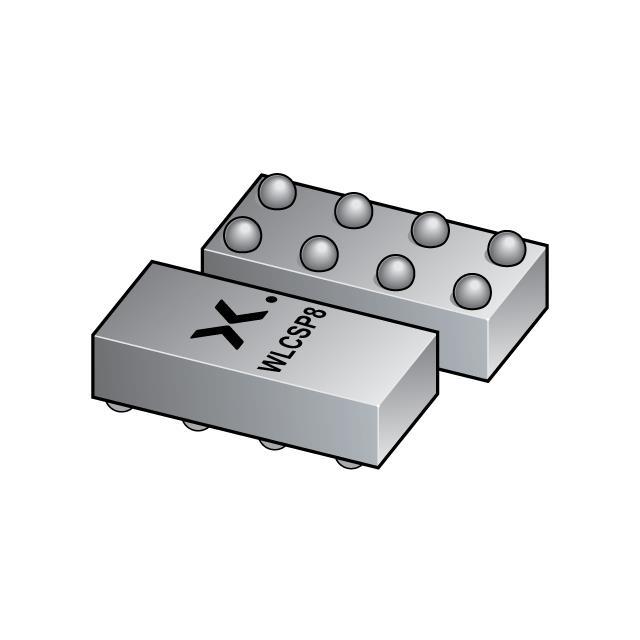

Nexperia USA Inc. NXS0102UNZ is a single-circuit, dual-channel bidirectional voltage level translator. This component operates with VCCA ranging from 1.65 V to 3.6 V and VCCB from 2.3 V to 5.5 V, facilitating seamless level shifting between different voltage domains. It supports data rates up to 24Mbps and features both open-drain and push-pull output types. The device is housed in an 8-WLCSP (0.75x1.55) package, suitable for surface mounting and supplied on tape and reel. This translator is commonly employed in applications requiring interface compatibility across diverse voltage levels, including consumer electronics and industrial control systems. Its compact footprint and bidirectional capability make it an efficient solution for signal integrity management in modern electronic designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFBGA, WLCSP |
| Output Type | Open Drain, Push-Pull |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Data Rate | 24Mbps |
| Supplier Device Package | 8-WLCSP (0.75x1.55) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 2 |
| Voltage - VCCA | 1.65 V ~ 3.6 V |
| Voltage - VCCB | 2.3 V ~ 5.5 V |
| Input Signal | - |
| Number of Circuits | 1 |
