74LVC1G123GF,115
IC MULTIVIBRATOR 5.3NS 8XSONManufacturer: Nexperia USA Inc.
Categories: Multivibrators
Quality Control: Learn More

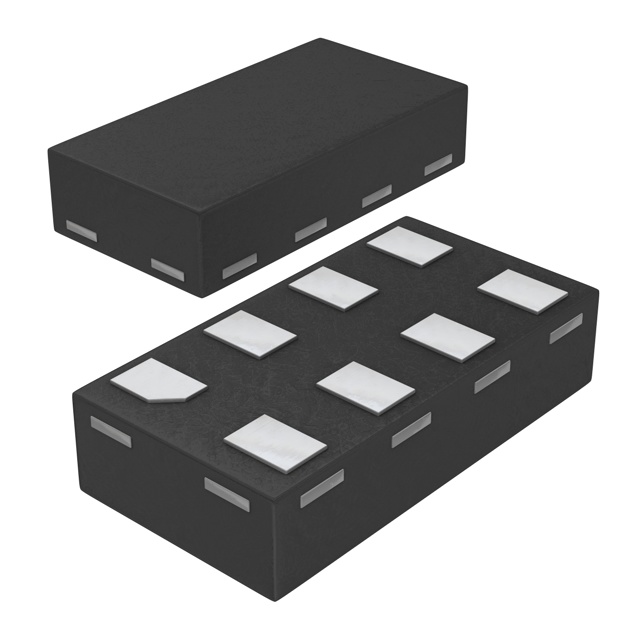

Nexperia's 74LVC1G123GF-115 is a high-performance monostable multivibrator featuring a propagation delay of 5.3 ns. This single-circuit device operates across a wide supply voltage range from 1.65 V to 5.5 V, with independent outputs capable of sourcing and sinking 32mA. The 74LVC series component incorporates Schmitt trigger inputs for enhanced noise immunity. Supplied in an 8-XSON (1.35x1) package on tape and reel, the 74LVC1G123GF-115 is suitable for surface mounting in applications demanding precise timing control. It finds utility in industrial automation, consumer electronics, and automotive systems where reliable pulse generation and timing are critical. The operating temperature range is from -40°C to 125°C.
Additional Information
Series: 74LVCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFDFN |
| Mounting Type | Surface Mount |
| Logic Type | Monostable |
| Operating Temperature | -40°C ~ 125°C |
| Propagation Delay | 5.3 ns |
| Independent Circuits | 1 |
| Current - Output High, Low | 32mA, 32mA |
| Schmitt Trigger Input | Yes |
| Supplier Device Package | 8-XSON (1.35x1) |
| Voltage - Supply | 1.65 V ~ 5.5 V |
