74LVC2G00GXX
IC GATE NAND 2CH 2-INP 8X2SONManufacturer: Nexperia USA Inc.
Categories: Gates and Inverters
Quality Control: Learn More

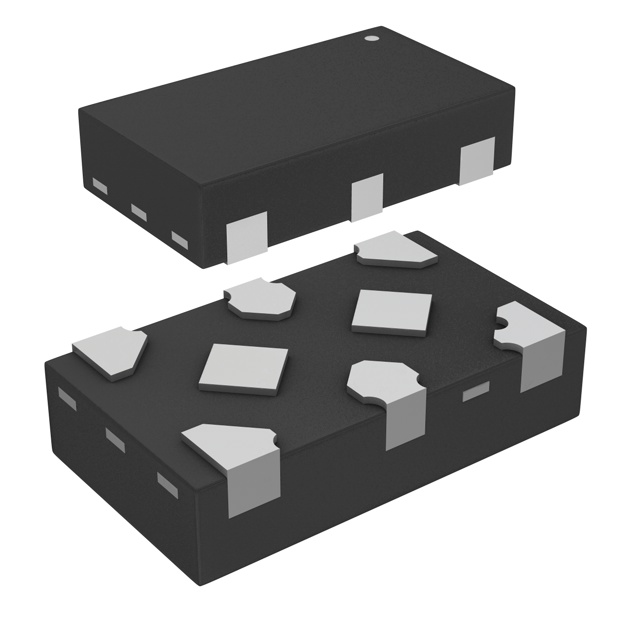

NAND Gate IC 2 Channel 8-X2SON (1.35x0.8)
Additional Information
Series: 74LVCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Output High, Low | 32mA, 32mA |
| Number of Inputs | 2 |
| Supplier Device Package | 8-X2SON (1.35x0.8) |
| Input Logic Level - High | 1.07V ~ 3.85V |
| Input Logic Level - Low | 0.58V ~ 1.65V |
| Max Propagation Delay @ V, Max CL | 4.2ns @ 5V, 50pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 4 µA |
Request a Quote
