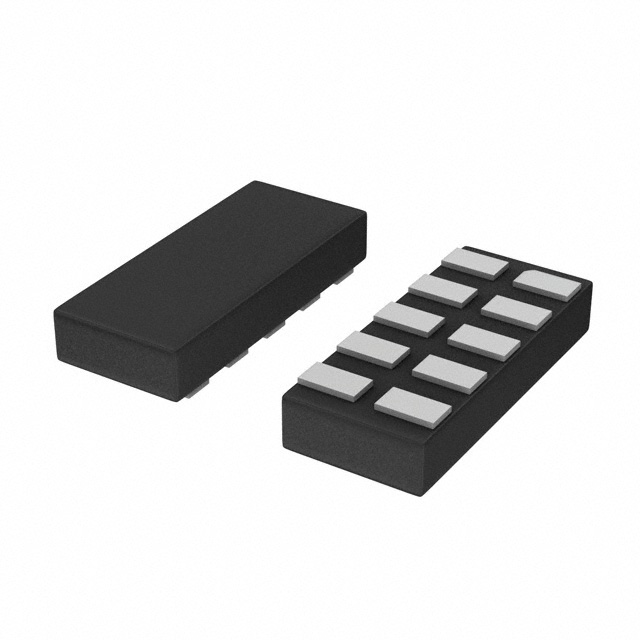

74AXP2T08GFX
IC GATE AND 2CH 2-INP 10XSONManufacturer: Nexperia USA Inc.
Categories: Gates and Inverters
Quality Control: Learn More
The Nexperia 74AXP2T08GFX is a dual 2-input AND gate from the 74AXP series. This advanced logic device features a wide operating voltage range from 0.7V to 2.75V and 1.2V to 5.5V, making it suitable for diverse system configurations. With a typical propagation delay of 6.5ns at 5V and 5pF, it offers efficient signal processing. The component is supplied in a compact 10-XSON (1.7x1) surface-mount package, delivered on tape and reel. It provides 12mA of current for both high and low outputs. This device finds application in various industries including consumer electronics, telecommunications, and industrial automation.
Additional Information
Series: 74AXPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-XFDFN |
| Mounting Type | Surface Mount |
| Logic Type | AND Gate |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 0.7V ~ 2.75V, 1.2V ~ 5.5V |
| Current - Output High, Low | 12mA, 12mA |
| Number of Inputs | 2 |
| Supplier Device Package | 10-XSON (1.7x1) |
| Input Logic Level - High | - |
| Input Logic Level - Low | - |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5V, 5pF |
| Number of Circuits | 2 |
