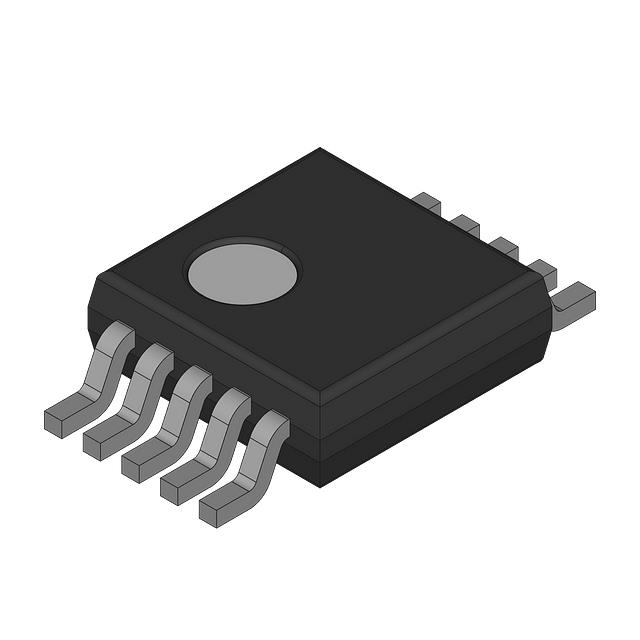

74AXP2T08DPJ
IC GATE AND 2CH 2-INP 10TSSOPManufacturer: Nexperia USA Inc.
Categories: Gates and Inverters
Quality Control: Learn More
Nexperia USA Inc. 74AXP Series 74AXP2T08DPJ is a dual 2-input AND gate with Schmitt-trigger inputs. This device operates over a wide supply voltage range of 0.7V to 2.75V, supporting universal voltage translation from 1.2V to 2.5V. Featuring low quiescent current of 500 nA (max) and fast propagation delay of 6.5ns (typical) at 5V, 5pF, it is suitable for low-power applications. The 10-TSSOP package facilitates surface mounting. The 74AXP2T08DPJ is utilized in industries such as consumer electronics, industrial automation, and telecommunications. Output drive capability is 12mA high and 12mA low.
Additional Information
Series: 74AXPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Schmitt Trigger |
| Packaging | Bulk |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | AND Gate |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 0.7V ~ 2.75V |
| Current - Output High, Low | 12mA, 12mA |
| Number of Inputs | 2 |
| Supplier Device Package | 10-TSSOP |
| Input Logic Level - High | 1.05V ~ 3.7V |
| Input Logic Level - Low | 0.35V ~ 0.8V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5V, 5pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 500 nA |
