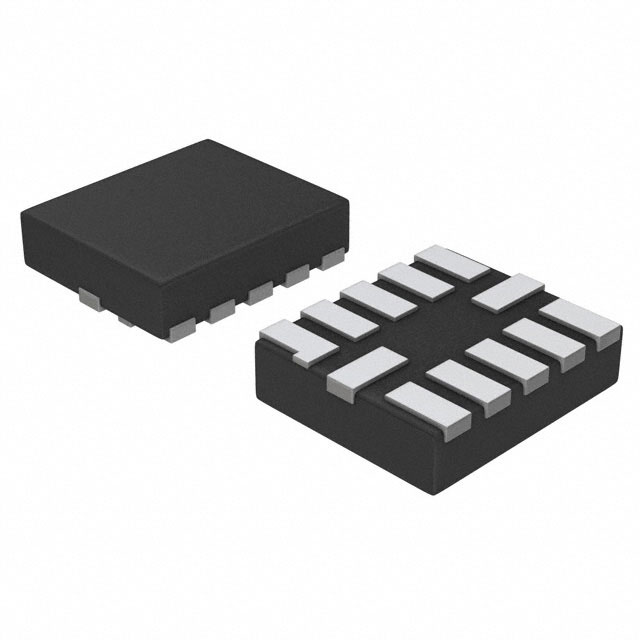

74AHC30GU12X
IC GATE NAND 1CH 8-INP 12XQFNManufacturer: Nexperia USA Inc.
Categories: Gates and Inverters
Quality Control: Learn More
NAND Gate IC 1 Channel 12-XQFN (1.7x2)
Additional Information
Series: 74AHCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-XFQFN |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Output High, Low | 8mA, 8mA |
| Number of Inputs | 8 |
| Supplier Device Package | 12-XQFN (1.7x2) |
| Input Logic Level - High | 1.5V ~ 3.85V |
| Input Logic Level - Low | 0.5V ~ 1.65V |
| Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 2 µA |
Request a Quote
