74AUP1G97UKAZ

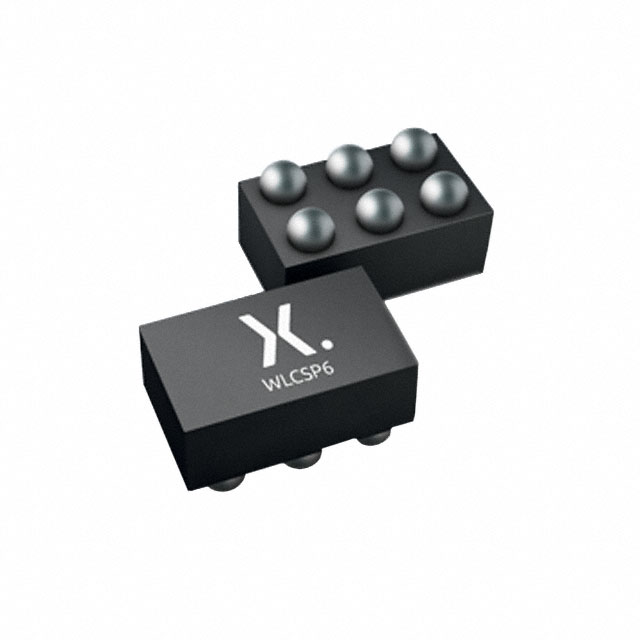

IC GATE MULTIFUNCTION WLCSP6Manufacturer: Nexperia USA Inc.
Categories: Gates and Inverters - Multi-Function, Configurable
Quality Control: Learn More
The Nexperia USA Inc. 74AUP1G97UKAZ is a configurable multiple function logic gate from the 74AUP series. This single-ended output device features one configurable circuit with three inputs, supporting a wide supply voltage range of 0.8V to 3.6V. Designed for high-density applications, it is housed in a compact 6-WLCSP (0.65x0.44) package, suitable for surface mounting and supplied on tape and reel. The device operates across a temperature range of -40°C to 125°C, with output drive capabilities of 4mA high and 4mA low. Schmitt trigger inputs are integrated for enhanced noise immunity. This component is commonly utilized in consumer electronics, industrial automation, and automotive systems requiring flexible logic implementation.
Additional Information
Series: 74AUPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFBGA, WLCSP |
| Output Type | Single-Ended |
| Mounting Type | Surface Mount |
| Logic Type | Configurable Multiple Function |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 0.8V ~ 3.6V |
| Current - Output High, Low | 4mA, 4mA |
| Number of Inputs | 3 |
| Schmitt Trigger Input | Yes |
| Supplier Device Package | 6-WLCSP (0.65x0.44) |
| Number of Circuits | 1 |
