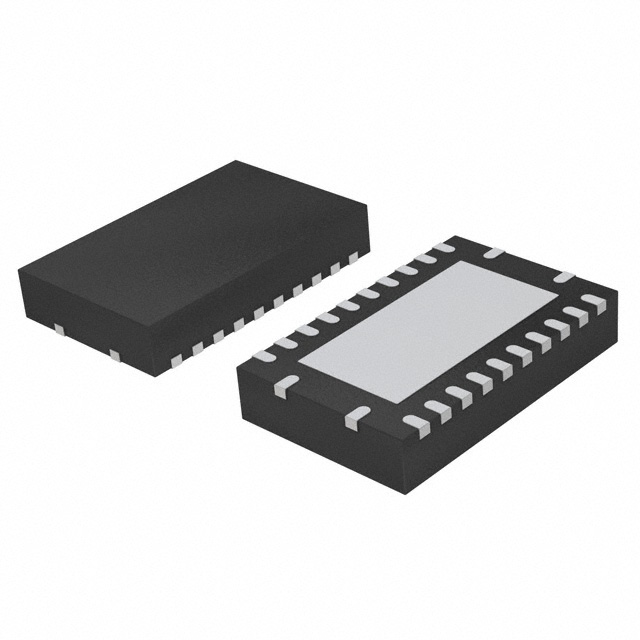

74LVC823ABQ-Q100J
IC FF D-TYPE SNGL 9BIT 24DHVQFNManufacturer: Nexperia USA Inc.
Categories: Flip Flops
Quality Control: Learn More
Nexperia USA Inc. 74LVC series D-Type flip-flop, part number 74LVC823ABQ-Q100J, is a single 9-bit flip-flop device with a positive edge trigger. This AEC-Q100 qualified component operates from a 1.65V to 3.6V supply and features a master reset function. The output type is Tri-State, Non-Inverted, with a drive capability of 24mA high and low. Maximum propagation delay is 10ns at 3.3V and 50pF, with a clock frequency up to 200 MHz. Quiescent current is a low 10 µA. Input capacitance is 5 pF. Supplied in a 24-DHVQFN (5.5x3.5) package on tape and reel, it is suitable for surface mounting. This component is commonly utilized in automotive applications.
Additional Information
Series: 74LVCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Function | Master Reset |
| Type | D-Type |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Iq) | 10 µA |
| Current - Output High, Low | 24mA, 24mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 200 MHz |
| Input Capacitance | 5 pF |
| Supplier Device Package | 24-DHVQFN (5.5x3.5) |
| Max Propagation Delay @ V, Max CL | 10ns @ 3.3V, 50pF |
| Grade | Automotive |
| Number of Bits per Element | 9 |
| Qualification | AEC-Q100 |
