74LVCH16245ABX,518
IC TXRX NON-INVERT 3.6V 60HXQFNManufacturer: Nexperia USA Inc.
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Nexperia's 74LVCH16245ABX-518 is a high-performance, dual-element, 8-bit per element, non-inverting transceiver. This device features 3-state outputs with robust drive capabilities of 24mA high and 24mA low. Designed for versatile operation across a supply voltage range of 1.2V to 3.6V, it is suitable for applications requiring high-speed data transfer and signal integrity. The 74LVCH series is recognized for its low voltage operation and excellent performance characteristics. The 60-HXQFNU (4x6) package with an exposed pad facilitates efficient thermal management, making it ideal for demanding environments. This transceiver finds extensive use in industrial automation, consumer electronics, and telecommunications infrastructure where reliable signal buffering and transmission are critical. The component is supplied on tape and reel for automated assembly processes.
Additional Information
Series: 74LVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

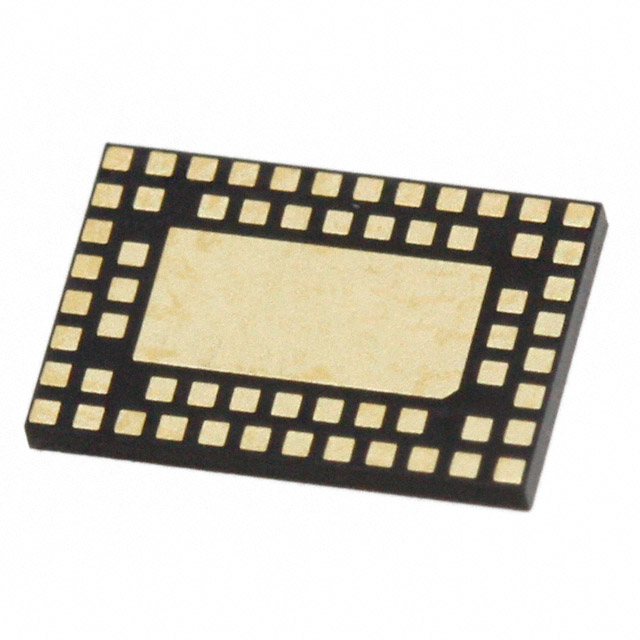

| Package / Case | 60-XFQFN Dual Rows, Exposed Pad |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 1.2V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 60-HXQFNU (4x6) |
