74LVCH16244AEV/G;5
IC BUF NON-INVERT 3.6V 56VFBGAManufacturer: Nexperia USA Inc.
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Nexperia USA Inc. 74LVCH series buffer, non-inverting, 3-state output device, part number 74LVCH16244AEV-G-5. This component features four independent 4-bit elements, each with a non-inverting buffer and 3-state output. Designed for operation from 1.2V to 3.6V supply, it offers 24mA drive capability at both high and low output levels. The 56-VFBGA (4.5x7) package facilitates high-density surface mount applications. Operating temperature range is -40°C to 125°C. This device is suitable for use in industrial automation, telecommunications infrastructure, and consumer electronics. Supplied on tape and reel.
Additional Information
Series: 74LVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

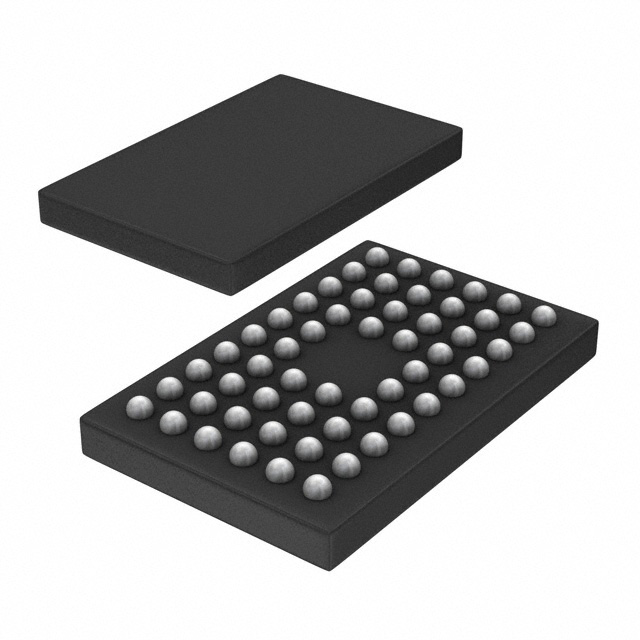

| Package / Case | 56-VFBGA |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 1.2V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 56-VFBGA (4.5x7) |
