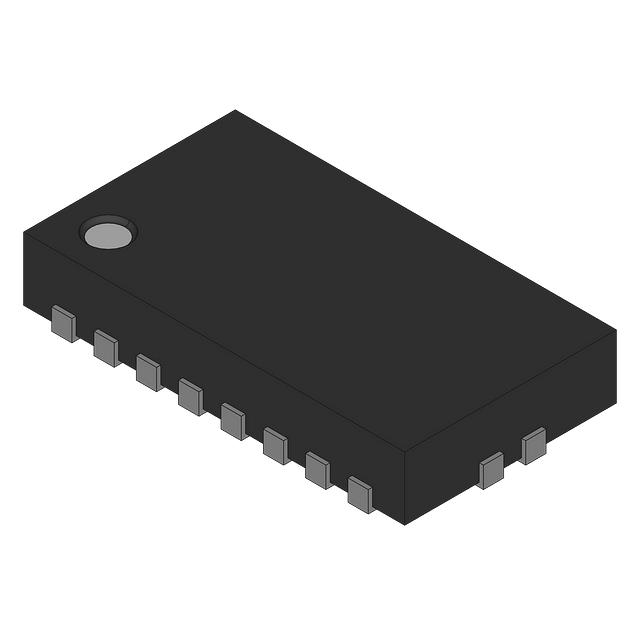

74LVC244ABQ/AUX
IC BUFF NON-INVERT 3.6V 20DHVQFNManufacturer: Nexperia USA Inc.
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Nexperia USA Inc. 74LVC series buffer, part number 74LVC244ABQ-AUX, is a non-inverting buffer featuring two independent 4-bit elements. Each element offers 3-state outputs capable of sourcing and sinking 24mA. This device operates across a supply voltage range of 1.65V to 3.6V and is qualified for operation from -40°C to 125°C. The 20-DHVQFN (4.5x2.5) package with an exposed pad facilitates efficient heat dissipation. Its characteristics make it suitable for applications in industrial automation, consumer electronics, and automotive systems requiring high-performance signal buffering and level shifting.
Additional Information
Series: 74LVCRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-VFQFN Exposed Pad |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 1.65V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 20-DHVQFN (4.5x2.5) |
