100117DC
OR-AND/-INVERT GATE, 100K SERIESManufacturer: National Semiconductor
Categories: Gates and Inverters - Multi-Function, Configurable
Quality Control: Learn More
AND/OR Gate Configurable 3 Circuit 12 Input (2, 2, 2, 2, 2, 2) Input 24-CDIP
Additional Information
Series: 100117RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-CDIP |
| Output Type | Differential |
| Mounting Type | Through Hole |
| Logic Type | AND/OR Gate |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply | -4.2V ~ -5.7V |
| Current - Output High, Low | - |
| Number of Inputs | 12 Input (2, 2, 2, 2, 2, 2) |
| Schmitt Trigger Input | No |
| Supplier Device Package | 24-CDIP |
| Number of Circuits | 3 |
Request a Quote
Clients Also Buy
95H02DC
OR/NOR GATE, ECL
54LS51DM
AND-OR-INVERT GATE, LS SERIES

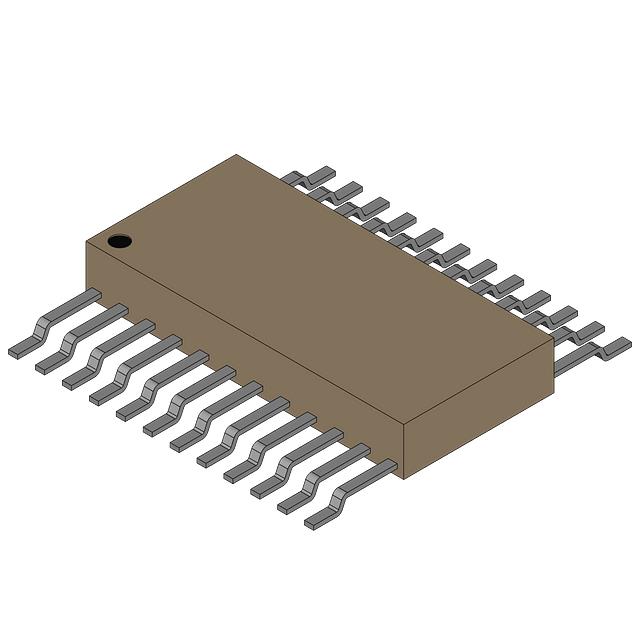

100301W-QMLV
