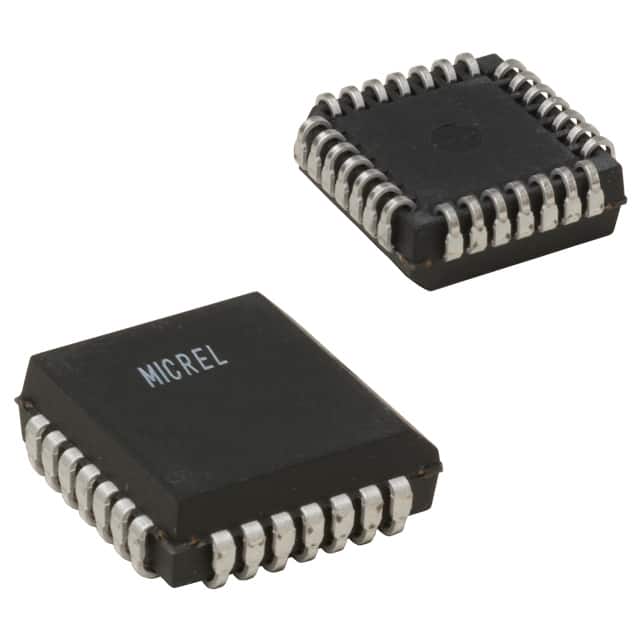

SY10E101JY
IC GATE OR/NOR QUAD 4INP 28-PLCCManufacturer: Microchip Technology
Categories: Gates and Inverters - Multi-Function, Configurable
Quality Control: Learn More
Microchip Technology's SY10E101JY is a Quad 4-Input NOR/OR Gate, part of the 10E series. This configurable logic device features four independent circuits, each with four inputs, totaling sixteen inputs. The output type is differential, and the device does not incorporate Schmitt trigger inputs. It operates within a voltage supply range of 4.2V to 5.5V and is specified for an operating temperature range of -40°C to 85°C. The SY10E101JY is supplied in a 28-PLCC surface-mount package with dimensions of 11.48x11.48mm. This component is commonly utilized in telecommunications, computing, and industrial control applications requiring high-speed digital logic functions.
Additional Information
Series: 10ERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Logic Type | NOR/OR Gate |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.2V ~ 5.5V |
| Current - Output High, Low | - |
| Number of Inputs | 16 Input (4, 4, 4, 4) |
| Schmitt Trigger Input | No |
| Supplier Device Package | 28-PLCC (11.48x11.48) |
| Number of Circuits | 4 |
